Capacitors

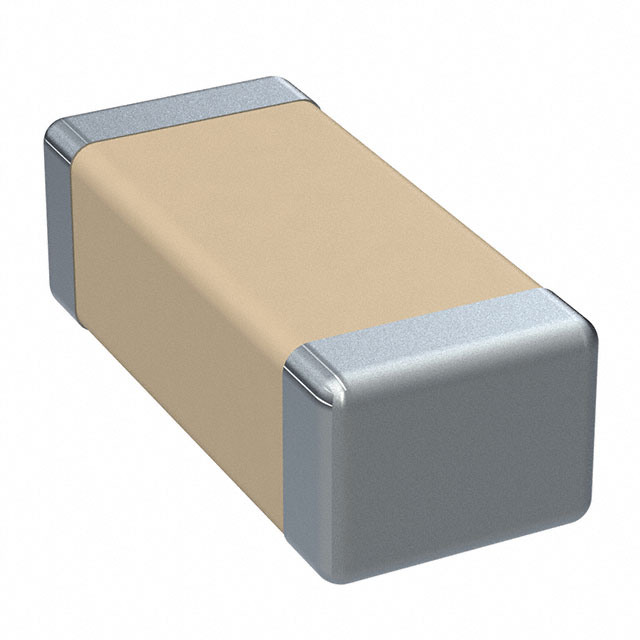

C1206X683JAREC7800

Active

KEMET

CAP CER 1206 68NF 250V X7R 5%

Capacitors

C1206X683JAREC7800

Active

KEMET

CAP CER 1206 68NF 250V X7R 5%

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1206X683JAREC7800

Applications	ESD Protection, Boardflex Sensitive
Capacitance	0.068 µF
Features	Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension Length	0.13 in
Size / Dimension Width	0.063 in
Temperature Coefficient	X7R
Thickness (Max)	0.047 in
Tolerance	5 %
Voltage - Rated	250 V

C1206X Series

...

Part	Size / Dimension Length	Size / Dimension Width	Temperature Coefficient	Features	Capacitance	Applications	Tolerance	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Thickness (Max)	Voltage - Rated	Ratings
KEMET C1206X683JAREC7800	0.13 in	0.063 in	X7R	Soft Termination	0.068 µF	Boardflex Sensitive ESD Protection	5 %	MLCC Surface Mount	125 °C	-55 °C	1206 (3216 Metric)	0.047 in	250 V
KEMET C1206X103GAGEC	0.13 in	0.063 in	C0G NP0	Low ESL Soft Termination	10000 pF	Boardflex Sensitive ESD Protection	2 %	MLCC Surface Mount	125 °C	-55 °C	1206 (3216 Metric)	0.043 in	250 V
KEMET C1206X479B8HACAUTO	0.13 in	0.063 in	X8R	High Temperature Low ESL Soft Termination	4.7 pF	Automotive Boardflex Sensitive	0.1 pF	MLCC Surface Mount	150 °C	-55 °C	1206 (3216 Metric)	0.039 in	10 V	AEC-Q200
KEMET C1206X103JARECAUTO7210	0.13 in	0.063 in	X7R	Soft Termination	10000 pF	Automotive Boardflex Sensitive ESD Protection	5 %	MLCC Surface Mount	125 °C	-55 °C	1206 (3216 Metric)	0.039 in	250 V	AEC-Q200
KEMET C1206X201M4HACAUTO	0.13 in	0.063 in	X8R	High Temperature Low ESL Soft Termination	200 pF	Automotive Boardflex Sensitive	20 %	MLCC Surface Mount	150 °C	-55 °C	1206 (3216 Metric)	0.039 in	16 V	AEC-Q200
KEMET C1206X759C5HAC7800	0.13 in	0.063 in	X8R	High Temperature Low ESL Soft Termination	7.5 pF	Boardflex Sensitive	0.25 pF	MLCC Surface Mount	150 °C	-55 °C	1206 (3216 Metric)	0.039 in	50 V
KEMET C1206X362K8HACAUTO	0.13 in	0.063 in	X8R	High Temperature Low ESL Soft Termination	3600 pF	Automotive Boardflex Sensitive	10 %	MLCC Surface Mount	150 °C	-55 °C	1206 (3216 Metric)	0.043 in	10 V	AEC-Q200
KEMET C1206X472K1RECAUTO7210	0.13 in	0.063 in	X7R	Soft Termination	4700 pF	Automotive Boardflex Sensitive ESD Protection	10 %	MLCC Surface Mount	125 °C	-55 °C	1206 (3216 Metric)	0.039 in	100 VAC/DC	AEC-Q200
KEMET C1206X103MARECAUTO7210	0.13 in	0.063 in	X7R	Soft Termination	10000 pF	Automotive Boardflex Sensitive ESD Protection	20 %	MLCC Surface Mount	125 °C	-55 °C	1206 (3216 Metric)	0.039 in	250 V	AEC-Q200
KEMET C1206X222J4REC7210	0.13 in	0.063 in	X7R	Soft Termination	2200 pF	Boardflex Sensitive ESD Protection	5 %	MLCC Surface Mount	125 °C	-55 °C	1206 (3216 Metric)	0.039 in	16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tape & Reel (TR)	2500	$ 0.12	30d+

CAD

3D models and CAD resources for this part

Description

General part information

C1206X Series

0.068 µF ±5% 250V Ceramic Capacitor X7R 1206 (3216 Metric)

Documents

Technical documentation and resources

Datasheet
