C-BR27-AK53

Active

CnC Tech, LLC

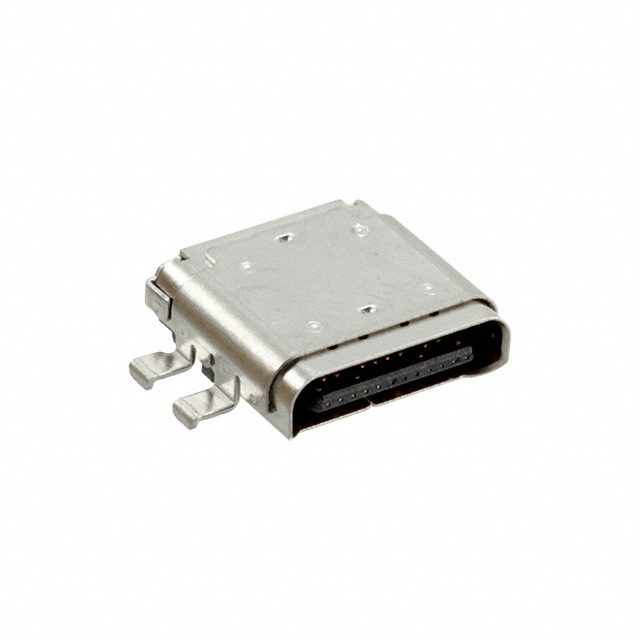

CONN RCPT USB3.1 TYPEC 24POS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Recommendations for USBs Datasheet

C-BR27-AK53

Active

CnC Tech, LLC

CONN RCPT USB3.1 TYPEC 24POS SMD

Deep-Dive with AI

DocumentsSoldering Recommendations for USBs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C-BR27-AK53

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Pick and Place, Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

C-BR27-A Series

CONN RCPT USB3.1 TYPEC 24POS SMD

Part	Specifications	Gender	Number of Contacts	Number of Ports	Termination	Mating Cycles	Mounting Feature	Connector Type	Mounting Type	Current Rating (Amps)	Features	Material Flammability Rating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish
CnC Tech, LLC C-BR27-AK53	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Receptacle	24	1	Solder	10000	Horizontal, Mid Mount	USB-C (USB TYPE-C)	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle	5 A	Board Guide, Pick and Place	UL94 V-0	Black	85 °C	-40 °C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.19
		10	$ 3.81
		25	$ 3.60
		50	$ 3.52
		100	$ 3.35
		250	$ 2.93
	Digi-Reel®	1	$ 4.19
		10	$ 3.81
		25	$ 3.60
		50	$ 3.52
		100	$ 3.35
		250	$ 2.93
	Tape & Reel (TR)	700	$ 2.08

Description

General part information

C-BR27-A Series

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle

Documents

Technical documentation and resources
