3048-C-440-AL-22
ActiveRAF Electronic Hardware
1/4 RD X 5/16 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3048-C-440-AL-22
ActiveRAF Electronic Hardware
1/4 RD X 5/16 LENGTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3048-C-440-AL-22 |
|---|---|
| Between Board Height | 7.94 mm |
| Between Board Height | 0.313 " |
| Color | Clear |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.448 in |
| Length - Overall [x] | 11.37 mm |
| Material | Aluminum |
| Plating | Anodized |
| Screw, Thread Size | #4-40 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.39 | |
| 5 | $ 2.27 | |||
| 10 | $ 2.21 | |||
| 25 | $ 2.15 | |||
| 50 | $ 2.09 | |||
| 100 | $ 1.97 | |||
| 250 | $ 1.85 | |||
| 500 | $ 1.79 | |||
| 1000 | $ 1.73 | |||
Description
General part information
3048-C Series

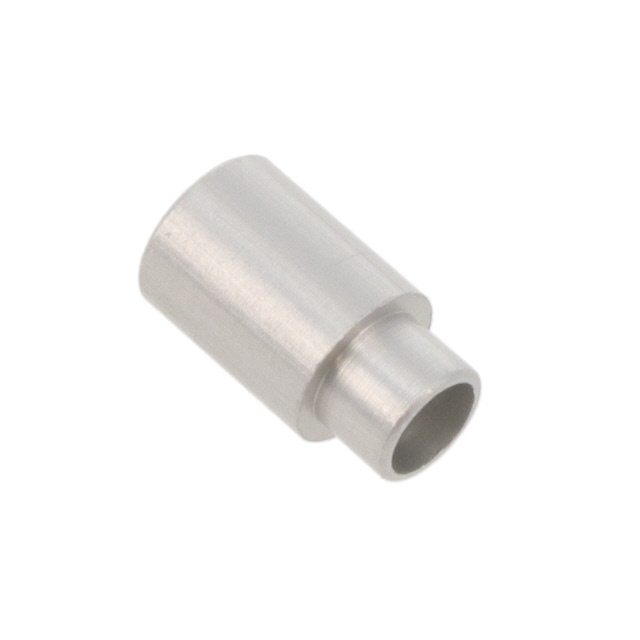

Round Standoff Threaded #4-40 Aluminum 0.313" (7.94mm) Clear
