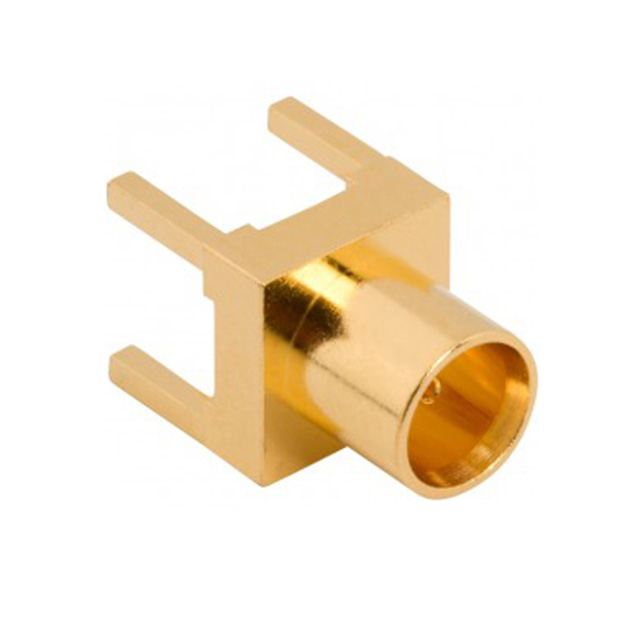

919-423J-71P12G
ActiveAmphenol RF
MCX STRAIGHT PCB JACK, 12G OPTIM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
919-423J-71P12G
ActiveAmphenol RF
MCX STRAIGHT PCB JACK, 12G OPTIM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 919-423J-71P12G |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
919-42 Series
| Part | Body Material | Center Contact Material | Connector Style | Connector Type | Mounting Type | Mating Cycles | Frequency - Max [Max] | Contact Termination | Center Contact Plating | Impedance | Fastening Type | Dielectric Material | Number of Ports | Body Finish | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Brass | Beryllium Copper | MCX | Female Socket Jack | Through Hole | 500 | 12 GHz | Solder | Gold | 75 Ohms | Snap-On | Polytetrafluoroethylene (PTFE) | 1 | Gold | Solder | -65 ░C | 165 °C | Gold |
Amphenol RF | Brass | Beryllium Copper | MCX | Female Socket Jack | Through Hole | 500 | 12 GHz | Solder | Gold | 75 Ohms | Snap-On | Polytetrafluoroethylene (PTFE) | 1 | Gold | Solder | -65 ░C | 165 °C | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.65 | |
| 10 | $ 8.20 | |||
| 25 | $ 7.69 | |||
| 50 | $ 7.32 | |||
| 100 | $ 6.97 | |||
| 250 | $ 6.54 | |||
| 500 | $ 6.23 | |||
| 1000 | $ 5.93 | |||
Description
General part information
919-42 Series
MCX Connector Jack, Female Socket 75 Ohms Through Hole Solder
