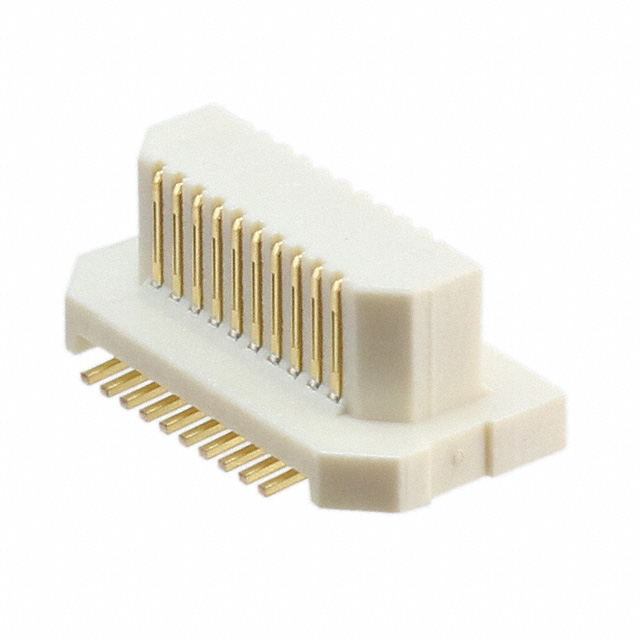

AXK6S20447M3
ActivePanasonic Electric Works
CONN RCPT 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK6S20447M3
ActivePanasonic Electric Works
CONN RCPT 20POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK6S20447M3 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.54 | |
| 10 | $ 5.23 | |||
| 25 | $ 4.84 | |||
| 100 | $ 4.19 | |||
| Digi-Reel® | 1 | $ 6.54 | ||
| 10 | $ 5.23 | |||
| 25 | $ 4.84 | |||
| 100 | $ 4.19 | |||
| Tape & Reel (TR) | 200 | $ 4.19 | ||
| 400 | $ 4.05 | |||
| 600 | $ 3.92 | |||
| 1000 | $ 3.66 | |||
Description
General part information
AXK6S20447 Series
20 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
