2004-1511-000

Active

Radiall USA, Inc.

SMB M STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB M STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	2004-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMB M STR BHD SP

Part	Housing Color	Center Contact Plating	Connector Type	Body Finish	Body Material	Dielectric Material	Frequency - Max [Max]	Contact Termination	Number of Ports	Impedance	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Mounting Feature	Center Contact Material	Fastening Type	Connector Style	Includes
Radiall USA, Inc. 2004-1511-000	Gold	Gold	Jack, Male Pin	Gold	Brass	Polytetrafluoroethylene (PTFE)	4 GHz	Solder Cup	1	50 Ohms	Solder	-65 ░C	165 °C	500	Bulkhead - Front Side Nut	Beryllium Copper	Snap-On	SMB	1 Connector, 1 Lockwasher, 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

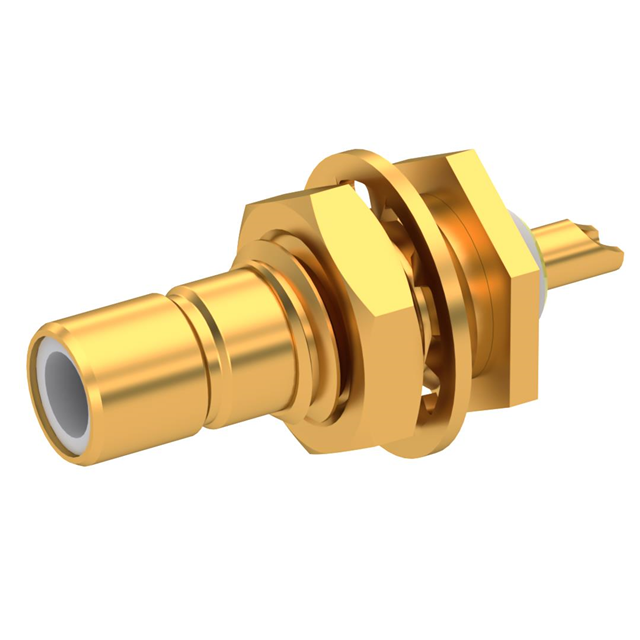

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
