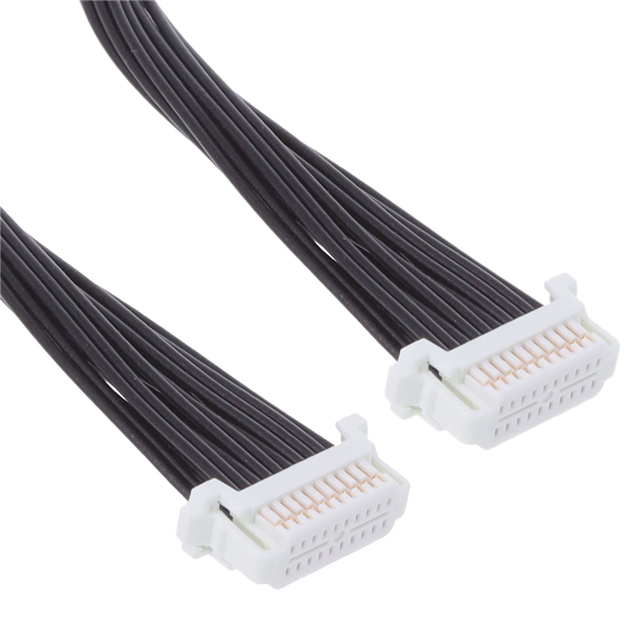

S1SD-10-28-GF-06.00-L1
ActiveSamtec Inc.
1.00 MM DOUBLE ROW DISCRETE WIRE
Deep-Dive with AI
Search across all available documentation for this part.
S1SD-10-28-GF-06.00-L1
ActiveSamtec Inc.
1.00 MM DOUBLE ROW DISCRETE WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S1SD-10-28-GF-06.00-L1 |
|---|---|
| Cable Termination | Crimp |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Latch Lock |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Connector | 0.039 " |
| Pitch - Connector | 1 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.82 | |
| 10 | $ 9.07 | |||
| 25 | $ 8.84 | |||
Description
General part information
S1SD-10 Series
20 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
