Q-010450001018i

Active

Amphenol Custom Cable

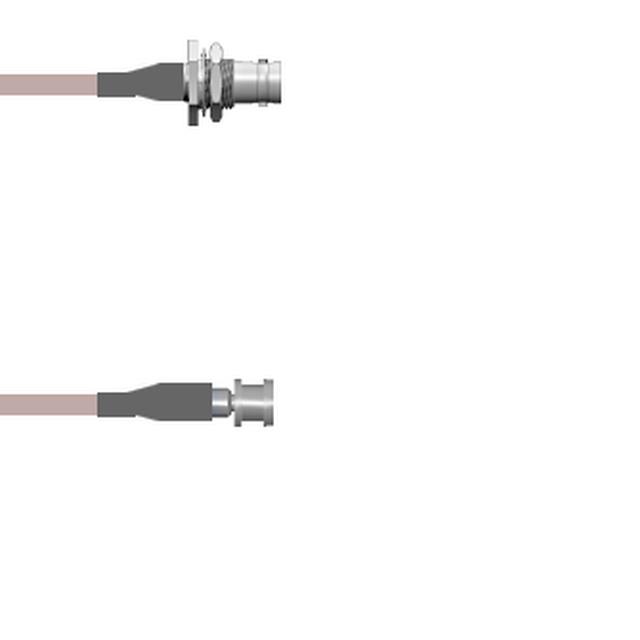

CBL ASSY BNC-SMPM JACK-JACK 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-010450001018i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMPM JACK-JACK 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.47
		25	$ 74.67
		50	$ 73.87
		100	$ 73.07
		250	$ 72.27

Description

General part information

Q-010450 Series

Cable Assembly Coaxial BNC to SMPM RG-178 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available

Specification	Q-010450001018i	Q-010450 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	SMPM Jack	SMPM Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	-	3.3 - 9.8 ft
Length	-	5 - 118.1 in
Length	-	1 - 1200 m
Length [x]	457.2 mm	457.2 mm
Length [x]	457.2 mm	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMPM	BNC to SMPM

Part	1st Connector Mounting Feature	Length	Length	Length	Features	1st Contact Gender	2nd Connector Mounting Type	1st Connector	Cable Type	Frequency - Max [Max]	2nd Connector	Overall Impedance	Color	Style	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-010450001002M	Bulkhead - Front Side Nut	6.6 ft	78.7 in	2 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001.75M	Bulkhead - Front Side Nut		29.53 "	750 mm	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001084i	Bulkhead - Front Side Nut	7 ft	84 in	2.1 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001108i	Bulkhead - Front Side Nut	9 ft	108 in	2.7 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001018i	Bulkhead - Front Side Nut				Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-010450001048i	Bulkhead - Front Side Nut	4 ft	48 in	1200 mm	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001060i	Bulkhead - Front Side Nut	5 ft	5 '	1.5 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001072i	Bulkhead - Front Side Nut	6 ft	72 in	1.8 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001001M	Bulkhead - Front Side Nut	3.3 ft	39.4 in	1 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
Amphenol Custom Cable Q-010450001003M	Bulkhead - Front Side Nut	9.8 '	118.1 in	3 m	Shielded	Female	Free Hanging (In-Line)	BNC Jack	RG-178	4 GHz	SMPM Jack	50 Ohms	Copper	BNC to SMPM	Panel Mount	Female
