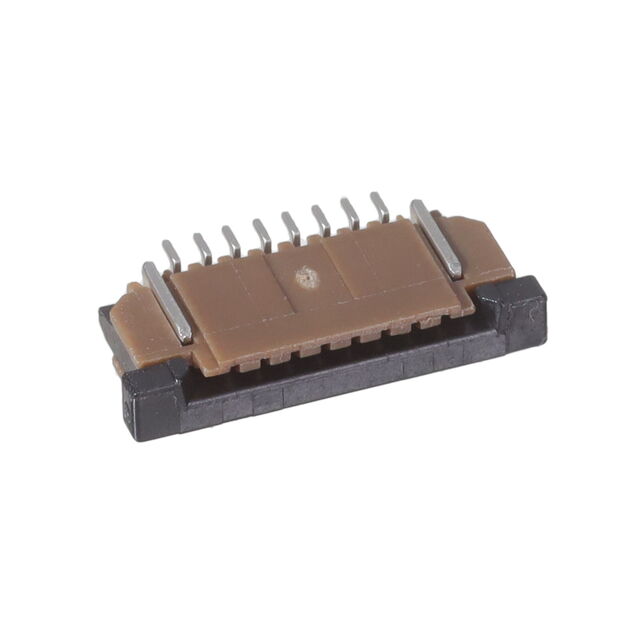

SFW8R-1STAE1LF

Active

Amphenol ICC (FCI)

CONN FPC BOTTOM 8POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documentsfci basics ffc fpc productpresentation Other Related Document Datasheet +2

SFW8R-1STAE1LF

Active

Amphenol ICC (FCI)

CONN FPC BOTTOM 8POS 1MM R/A

Deep-Dive with AI

Documentsfci basics ffc fpc productpresentation Other Related Document Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW8R-1STAE1LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

SFW8R Series

Part	Housing Color	Number of Positions	Flat Flex Type	Cable End Type	Housing Material	Contact Finish	FFC, FCB Thickness [z]	Voltage Rating	Locking Feature	Pitch [x]	Pitch [x]	Material Flammability Rating	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Mounting Type	Termination	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Color	Contact Material	Connector/Contact Type	Features	FFC, FCB Thickness
Amphenol ICC (FCI) SFW8R-1STAE1LF	Brown	8	FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Gold	0.3 mm 0.33 mm	100 V	Slide Lock	0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Kinked Pin	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Black	Phosphor Bronze	Contacts Bottom
Amphenol ICC (FCI) SFW8R-1STE1HLF	Black	8	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm 0.33 mm	100 V	Slide Lock	0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Black	Phosphor Bronze	Contacts Bottom
Amphenol ICC (FCI) SFW8R-3STE1LF	Black	8	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm 0.33 mm	100 V	Slide Lock	0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Black	Phosphor Bronze	Contacts Bottom
Amphenol ICC (FCI) SFW8R-4STE1LF	Black	8	FFC FPC	Notched Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm 0.33 mm	100 V	Slide Lock	0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Brown	Phosphor Bronze	Contacts Top	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW8R-2STE9LF	Brown	8	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm 0.33 mm	100 V	Slide Lock	0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Black	Phosphor Bronze	Contacts Top
Amphenol ICC (FCI) SFW8R-2STAE5LF	Brown	8	FPC	Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Gold			Slide Lock	0.039 in	1 mm	UL94 V-0		0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled			Black	Phosphor Bronze	Contacts Top		0.33 mm
Amphenol ICC (FCI) SFW8R-2STE1LF	Brown	8	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin		100 V		0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Kinked Pin	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C		Phosphor Bronze	Contacts Top		0.3 mm
Amphenol ICC (FCI) SFW8R-5STE1		8	CIC	Tapered	Polyphenylene Sulfide (PPS) Glass Filled				Slide Lock	0.039 in	1 mm			0.106 in	2.7 mm	Surface Mount Right Angle	Solder						Contacts Bottom		0.3 mm
Amphenol ICC (FCI) SFW8R-1STE5LF	Brown	8	FFC FPC	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Tin	0.3 mm 0.33 mm	100 V	Slide Lock	0.039 in	1 mm	UL94 V-0		0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Black	Phosphor Bronze	Contacts Bottom
Amphenol ICC (FCI) SFW8R-2STAE1LF	Brown	8	FPC	Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Gold		100 V	Slide Lock	0.039 in	1 mm	UL94 V-0	20	0.106 in	2.7 mm	Surface Mount Right Angle	Solder	Polyphenylene Sulfide (PPS) Glass Filled	105 ░C	-55 °C	Black	Phosphor Bronze	Contacts Top		0.3 mm
