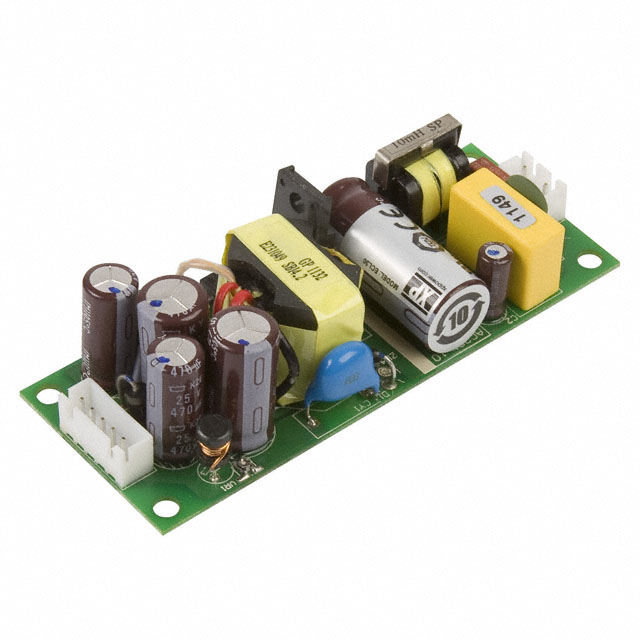

ECL30UD03-T

Active

XP POWER

AC/DC CONVERTER 5V 12V 30W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 5V 12V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	ECL30UD03-T

Applications	ITE (Commercial)
Current - Output 1	3 A
Current - Output 2	1.3 A
Efficiency	81 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	87.9 mm
Size / Dimension [x]	3.46 "
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.6 mm
Size / Dimension [z]	22.4 mm
Size / Dimension [z]	0.88 in
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

Part	Voltage - Output 2	Type	Efficiency	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Power (Watts)	Number of Outputs	Features	Current - Output 2	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output 1	Voltage - Isolation
XP POWER ECL30UD01-S	-12 V	Enclosed	84 %	Chassis Mount	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm	62368-1	30 W	2	Adjustable Output DC Input Capable Universal Input	1.3 A	12 V	-20 °C	70 °C	ITE (Commercial)	1.3 A	3000 V
XP POWER ECL30UD03-S	12 V	Enclosed	81 %	Chassis Mount	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm	62368-1	30 W	2	Adjustable Output DC Input Capable Universal Input	1.3 A	5 V	-20 °C	70 °C	ITE (Commercial)	3 A	3000 V
XP POWER ECL30UD03-T	12 V	Open Frame	81 %	Chassis Mount	22.4 mm	1.36 "	3.46 "	34.6 mm	0.88 in	87.9 mm	62368-1	30 W	2	Adjustable Output DC Input Capable Universal Input	1.3 A	5 V	-20 °C	70 °C	ITE (Commercial)	3 A	3000 V
