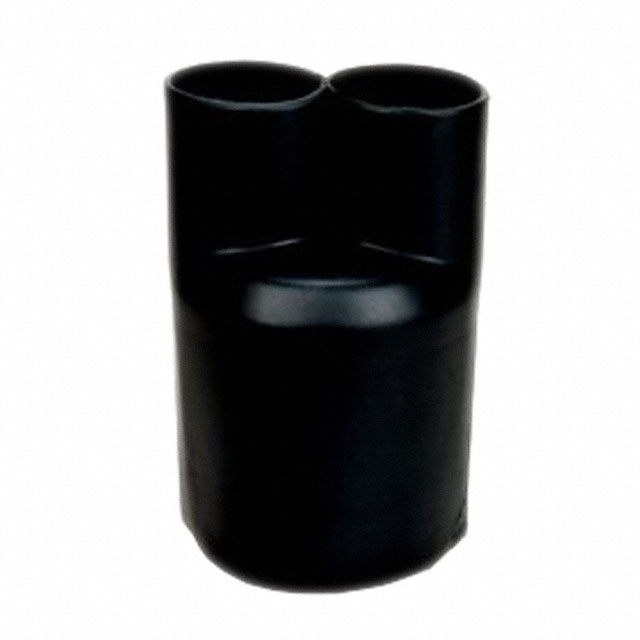

3M HEAT SHRINKABLE CABLE BREAKOUT BOOT HDBB-220-1-250: BLACK, 2-WAY OUTLET, 1 PER CASE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDBB-220-1-250

Active

3M HEAT SHRINKABLE CABLE BREAKOUT BOOT HDBB-220-1-250: BLACK, 2-WAY OUTLET, 1 PER CASE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.93
		5	$ 35.31
		10	$ 32.00
		20	$ 29.79
		50	$ 28.69
		100	$ 28.03
Newark	Each	1	$ 46.98
		25	$ 43.05
		50	$ 39.99
		100	$ 38.68
		250	$ 37.37

Description

General part information

HDBB Series

Heat Shrink Boot, Transition - Breakout, 2:1 Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDBB-220-1-250	HDBB Series

Color	Black	Black
Features	Adhesive Coating, Flame Retardant	Adhesive Coating, Flame Retardant
Large Diameter Recovered [diameter]	0.9 "	0.37 - 3 in
Large Diameter Recovered [diameter]	22.86 mm	9.4 - 76.2 mm
Large Diameter Supplied	48.26 mm	30.48 - 133.35 mm
Large Diameter Supplied	-	1.2 - 5.25 in
Large Diameter Supplied	-	20.32 - 81.28 mm
Large Diameter Supplied [diameter]	1.9 in	0.8 - 3.2 in
Material	Polyolefin (PO), Semi-Rigid	Polyolefin (PO), Semi-Rigid
Shelf Life	-	60 Months
Shelf Life Start	-	Date of Manufacture
Small Diameter Recovered [diameter]	0.3 in	0.11 - 0.75 "
Small Diameter Recovered [diameter]	7.62 mm	2.79 - 19.05 mm
Small Diameter Supplied	-	12.7 mm
Small Diameter Supplied [diameter]	0.75 in	0.28 - 1.4 in
Small Diameter Supplied [diameter]	19.05 mm	7.11 - 35.56 mm
Small Recovered Length	30.48 mm	17.78 - 76.2 mm
Small Recovered Length	-	0.75 - 3 in
Small Recovered Length	-	0.7 in
Small Recovered Length	-	1 - 1.6 in
Small Recovered Length [custom]	1.2 in	1.2 in
Total Length Recovered	-	68.58 - 228.6 mm
Total Length Recovered	-	2.7 - 9 in
Total Length Recovered [x]	106.68 mm	83.82 - 129.54 mm
Total Length Recovered [x]	4.2 in	3.3 - 5.1 in
Type	Boot, Transition - Breakout, 2:1	Boot, Transition - Breakout, 4:1, Boot, Transition - Breakout, 3:1, Boot, Transition - Breakout, 2:1

HDBB Series

HEATSHRINK BOOT BREAKOUT 4:1 BLK

Part	Features	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Small Recovered Length [x]	Small Recovered Length	Large Diameter Supplied	Large Diameter Supplied	Material	Total Length Recovered	Total Length Recovered	Color	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Total Length Recovered [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Recovered Length [custom]	Small Recovered Length [custom]	Total Length Recovered [x]	Small Recovered Length	Shelf Life Start	Shelf Life	Small Diameter Supplied
3M HDBB-430-1-250	Adhesive Coating, Flame Retardant	13.97 mm	0.55 "	3 in	76.2 mm	Boot, Transition - Breakout, 4:1	3 in	76.2 mm	133.35 mm	5.25 in	Polyolefin (PO), Semi-Rigid	228.6 mm	9 in	Black	1.35 in	34.29 mm
3M HDBB-325-1-250	Adhesive Coating, Flame Retardant	7.62 mm	0.3 in	0.9 "	22.86 mm	Boot, Transition - Breakout, 3:1		30.48 mm			Polyolefin (PO), Semi-Rigid	114.3 mm		Black	0.82 in	20.83 mm	4.5 in	1.7 in	43.18 mm	1.2 in
3M HDBB-205-1-250	Adhesive Coating, Flame Retardant	2.79 mm	0.11 "	0.37 in	9.4 mm	Boot, Transition - Breakout, 2:1		17.78 mm			Polyolefin (PO), Semi-Rigid	68.58 mm	2.7 in	Black	0.33 in	8.38 mm		0.8 "	20.32 mm		0.7 in
3M HDBB-220-1-250	Adhesive Coating, Flame Retardant	7.62 mm	0.3 in	0.9 "	22.86 mm	Boot, Transition - Breakout, 2:1		30.48 mm	48.26 mm		Polyolefin (PO), Semi-Rigid			Black	0.75 in	19.05 mm	4.2 in	1.9 in		1.2 in		106.68 mm
3M HDBB-405-1-250	Adhesive Coating, Flame Retardant	2.79 mm	0.11 "	0.43 in	10.92 mm	Boot, Transition - Breakout, 4:1	0.75 in	19.05 mm			Polyolefin (PO), Semi-Rigid	69.85 mm	2.75 in	Black	0.28 in	7.11 mm		0.9 in	22.86 mm
3M HDBB-335-1-250	Adhesive Coating, Flame Retardant	12.7 mm	0.5 "	1.4 in	35.56 mm	Boot, Transition - Breakout, 3:1		40.64 mm			Polyolefin (PO), Semi-Rigid			Black	1.25 in	31.75 mm	5.1 in	2.4 in	60.96 mm			129.54 mm	1.6 in
3M HDBB-340-1-250	Adhesive Coating, Flame Retardant	19.05 mm	0.75 "	2 in	50.8 mm	Boot, Transition - Breakout, 3:1		40.64 mm			Polyolefin (PO), Semi-Rigid			Black	1.4 in	35.56 mm	5.1 in	3.2 in	81.28 mm			129.54 mm	1.6 in
3M HDBB-320-1-250	Adhesive Coating, Flame Retardant	4.06 mm	0.16 "	0.5 in	12.7 mm	Boot, Transition - Breakout, 3:1		25.4 mm	30.48 mm	1.2 in	Polyolefin (PO), Semi-Rigid			Black	0.5 in		3.3 in					83.82 mm	1 in	Date of Manufacture	60 Months	12.7 mm
