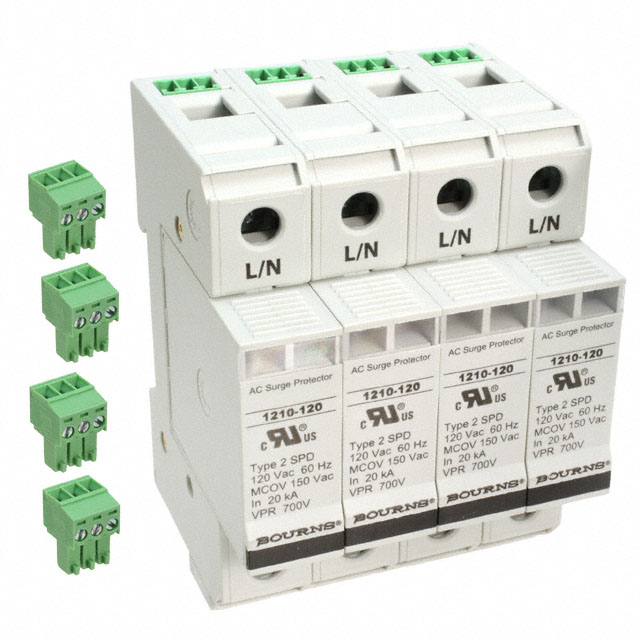

1210-4S-120

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 150VAC MCOV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPD New Product Release Datasheet

1210-4S-120

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 150VAC MCOV

Deep-Dive with AI

DocumentsSPD New Product Release Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 364.90

Description

General part information

1210 Series

SPD TYPE 2/TYPE 4 150VAC MCOV

Documents

Technical documentation and resources

SPD New Product Release

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1210-4S-120	1210 Series

Approval Agency	UL, CSA, CE	UL, CSA, CE
Current - Discharge (Max) (8/20µS) [Max]	100 kA	100 kA
Current - Discharge (Nom) (8/20µS)	20 kA	20 kA
Current - Short Circuit Rating (SCCR)	100 kA	100 kA
Features	Thermally Protected, Remote Signaling Contacts	Thermally Protected, Remote Signaling Contacts
Form	Module Only	Module Only
Mounting Type	DIN Rail	DIN Rail
Number of Poles	4 poles	1 - 4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-50 °C	-50 °C
Type	Type 4, Type 2	Type 4, Type 2
Voltage - Continuous Operating (Max) (MCOV)	-	420 VAC
Voltage - Continuous Operating (Max) (MCOV) [Max]	150 VAC	150 - 840 VAC
Voltage - Protection Level (VP) (2416)	900 V	1.25 - 900 kV
Voltage - Protection Rating (VPR)	600 V	1.2 - 900 kV

1210 Series

SPD TYPE 2/TYPE 4 840VAC MCOV

Part	Voltage - Protection Level (VP) (2416)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Voltage - Protection Rating (VPR)	Type	Current - Discharge (Max) (8/20µS) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Nom) (8/20µS)	Form	Approval Agency	Mounting Type	Number of Poles	Features	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV)
Bourns Inc. 1210-3S-600	4 kV	840 VAC	3 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	3	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-3S-400	1.8 kV		1.2 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	3	Remote Signaling Contacts, Thermally Protected	100 kA	420 VAC
Bourns Inc. 1210-4S-120	900 V	150 VAC	600 V	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	4 poles	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-1S-600	4 kV	840 VAC	3 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	1	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-4S-230	1.25 kV	275 VAC	900 V	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	4 poles	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-3S-230	1.25 kV	275 VAC	900 V	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	3	Remote Signaling Contacts, Thermally Protected	100 kA
Bourns Inc. 1210-1S-400	1.8 kV		1.2 kV	Type 2, Type 4	100 kA	85 °C	-50 °C	20 kA	Module Only	CE, CSA, UL	DIN Rail	1	Remote Signaling Contacts, Thermally Protected	100 kA	420 VAC
