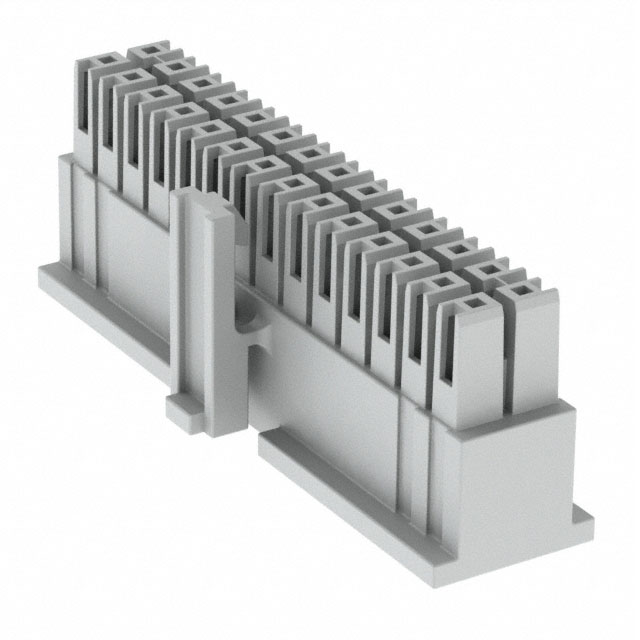

IPD1-14-D-K

Active

Samtec Inc.

CONN RCPT HSG 28POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPD1 Datasheet +1

IPD1-14-D-K

Active

Samtec Inc.

CONN RCPT HSG 28POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet IPD1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPD1-14-D-K

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	28
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

IPD1-14 Series

Part	Mounting Type	Contact Termination	Color	Row Spacing [x]	Row Spacing	Fastening Type	Contact Type	Insulation Material	Features	Number of Positions	Number of Rows	Note	Pitch [x]	Pitch [x]	Connector Type
Samtec Inc. IPD1-14-D-P-M	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Polarizing Key	28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-D-GP	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Guide Post	28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-S-R	Free Hanging (In-Line)	Crimp	White			Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6		14	1	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-D-R	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6		28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-D-GP-R	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Guide Post	28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-D-K	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Polarizing Key	28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-D-M	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6		28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle
Samtec Inc. IPD1-14-D	Free Hanging (In-Line)	Crimp	White	0.1 in	2.54 mm	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6		28	2	Contacts Not Included	2.54 mm	0.1 in	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.97
		10	$ 1.50
		25	$ 1.35
		50	$ 1.25
		100	$ 1.16
		250	$ 1.05
		500	$ 0.97
		1000	$ 0.90
		2500	$ 0.82
