General part information

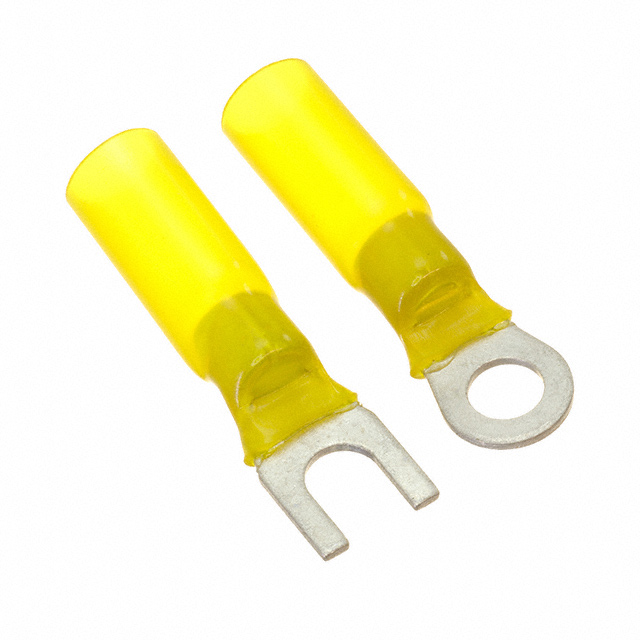

Spade Terminal Connector Crimp 10-12 AWG

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CPGI-B-106-2503/1503-5	CPGI Series

Barrier Type	-	2 Wall (Dual)
Bottom Termination	-	Closed
Color	-	Black
Features	-	Flange
Insulation	-	Fully Insulated, Non-Insulated
Kit Type	-	Butt Splice, Spade Terminals, Ring
Mounting Type	Free Hanging (In-Line)	Panel, Chassis, Free Hanging (In-Line)
Number of Circuits	-	6
Number of Circuits	-	8
Number of Rows	-	2
Number of Wire Entries	-	2 - 16
Pitch	-	0.563 in
Pitch	-	14.3 mm
Terminal Block Type	-	Barrier Block
Terminal Type	Standard	Tap, Inline, Standard
Termination	Crimp	Crimp
Top Termination	-	Screws
Values	-	10 AWG
Values	-	Crimp Terminals
Values	-	22 AWG
Values	-	100 pcs
Wire Gauge [Max]	12 AWG	12 - 30 AWG
Wire Gauge [Min]	10 AWG	10 - 12 AWG

CPGI-1546310-6

Part	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Number of Circuits	Pitch [x]	Pitch [x]	Color	Barrier Type	Number of Rows	Mounting Type	Terminal Block Type	Bottom Termination	Number of Wire Entries	Features	Termination	Insulation	Terminal Type	Number of Circuits [custom]	Kit Type	Values [Max]	Values	Values [Min]	Values
TE Energy & Utilities CPGI-1546310-6	10 AWG	30 AWG	Screws	6	0.563 in	14.3 mm	Black	2 Wall (Dual)	2	Chassis, Panel	Barrier Block	Closed	12	Flange
TE Energy & Utilities CPGI-1116377-2	12 AWG	14 AWG											2		Crimp	Fully Insulated	Inline, Tap
TE Energy & Utilities CPGI-1546310-8	10 AWG	30 AWG	Screws		0.563 in	14.3 mm	Black	2 Wall (Dual)	2	Chassis, Panel	Barrier Block	Closed	16	Flange				8
TE Energy & Utilities CPGI-TERM-ASRT-100																			Butt Splice, Ring, Spade Terminals	10 AWG	Crimp Terminals	22 AWG	100 pcs
TE Energy & Utilities CPGI-B-106-2401/1501-6										Free Hanging (In-Line)					Crimp		Standard
TE Energy & Utilities CPGI-B-106-2503/1503-5	10 AWG	12 AWG								Free Hanging (In-Line)					Crimp		Standard
TE Energy & Utilities CPGI-CCS-18-10-S-12																Non-Insulated
