GSF1.0001.31

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

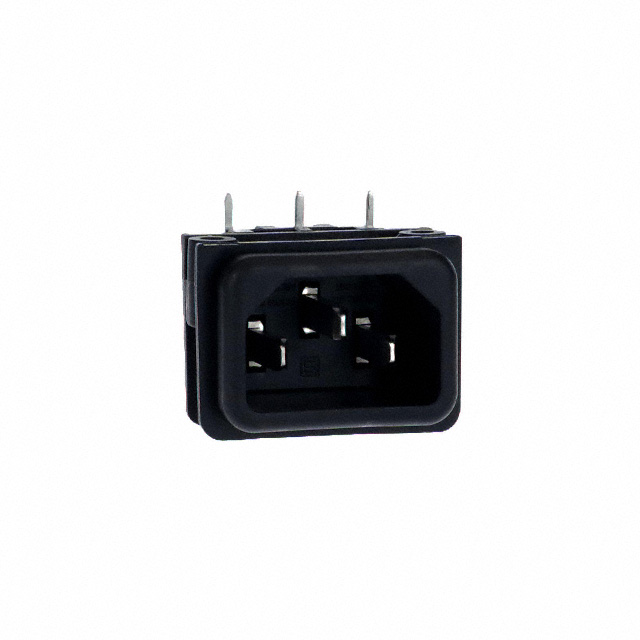

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GSF1.0001.31	GSF1.0001 Series

Accomodates a Fuse	False	False
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	10 A
Features	Mounting Hardware	Mounting Hardware
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions	-	30.3 mm
Panel Cutout Dimensions	-	22.3 mm
Panel Thickness	-	0.236 in
Panel Thickness	-	6 mm
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Termination	Connector Type	Panel Thickness [custom]	Panel Thickness [custom]	Filter Type	Current Rating - Appliance Inlet	Features	Ingress Protection	Voltage Rating - Appliance Inlet	Approval Agency	Accomodates a Fuse	Material Flammability Rating	Mounting Type	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness	Panel Thickness
SCHURTER Inc. GSF1.0001.31	Solder	Male Blades, Receptacle	0.059 in	1.5 mm	Unfiltered - Commercial	10 A	Mounting Hardware	IP40	250 VAC	CCC, CSA, ENEC, UL		UL94 V-0	Panel Mount, Flange, Through Hole, Right Angle	IEC 320-C14
SCHURTER Inc. GSF1.0001.01	Solder	Male Blades, Receptacle			Unfiltered - Commercial	10 A	Mounting Hardware	IP40	250 VAC	CCC, CSA, ENEC, UL		UL94 V-0	Panel Mount, Flange, Through Hole, Right Angle	IEC 320-C14	30.3 mm	22.3 mm	0.236 in	6 mm
