DWTC-4/1-X-STK
ActiveTE Connectivity AMP Connectors

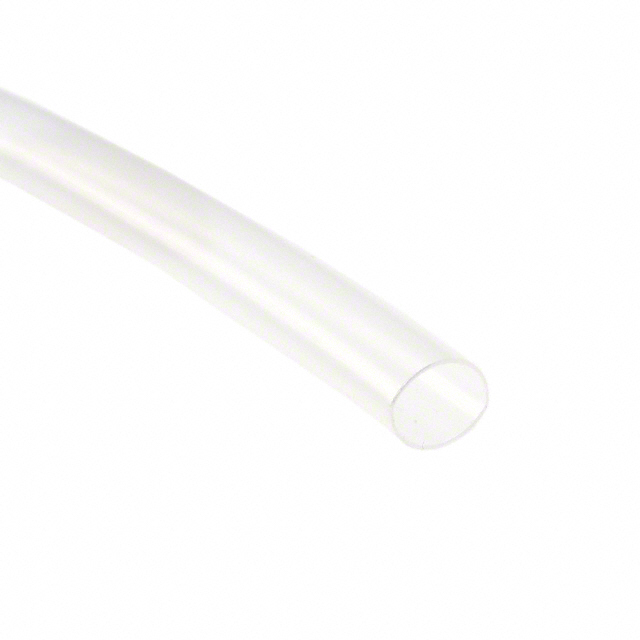

HEATSHRINK 0.158" X 4' CLEAR
Deep-Dive with AI
Search across all available documentation for this part.
DWTC-4/1-X-STK
ActiveTE Connectivity AMP Connectors
HEATSHRINK 0.158" X 4' CLEAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DWTC-4/1-X-STK |
|---|---|
| Color | Clear |
| Features | Moisture-Proof, Abrasion Resistant, Adhesive Lined |
| Inner Diameter - Recovered [diameter] | 0.039 in |
| Inner Diameter - Recovered [diameter] | 0.99 mm |
| Inner Diameter - Supplied [diameter] | 0.158 in |
| Inner Diameter - Supplied [diameter] | 4.01 mm |
| Length [x] | 1.22 m |
| Length [x] | 4 ft |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.81 mm |
| Recovered Wall Thickness | 0.032 " |
| Shelf Life | 36 Months |
| Shrink Temperature | 60 °C |
| Shrinkage Ratio | 4 to 1 |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.08 | |
| 10 | $ 2.58 | |||
| 100 | $ 2.30 | |||
| 1000 | $ 2.08 | |||
DWTC-4/1 Series
HEATSHRINK 0.158" X 4' CLEAR
| Part | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Material | Shrinkage Ratio | Shelf Life | Shrink Temperature | Features | Type | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Length [x] | Length [x] | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Recovered Wall Thickness | Recovered Wall Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors DWTC-4/1-X-STK | 0.039 in | 0.99 mm | Clear | 75 ░C | -55 °C | Polyolefin (PO), Irradiated | 4 to 1 | 36 Months | 60 °C | Abrasion Resistant, Adhesive Lined, Moisture-Proof | Tubing, Flexible | 35 °C | 0 °C | 1.22 m | 4 ft | 0.158 in | 4.01 mm | 0.81 mm | 0.032 " |
Description
General part information
DWTC-4/1 Series
Heat Shrink Tubing, Flexible 0.158" (4.01mm) 4 to 1 Clear 4.00' (1.22m)
