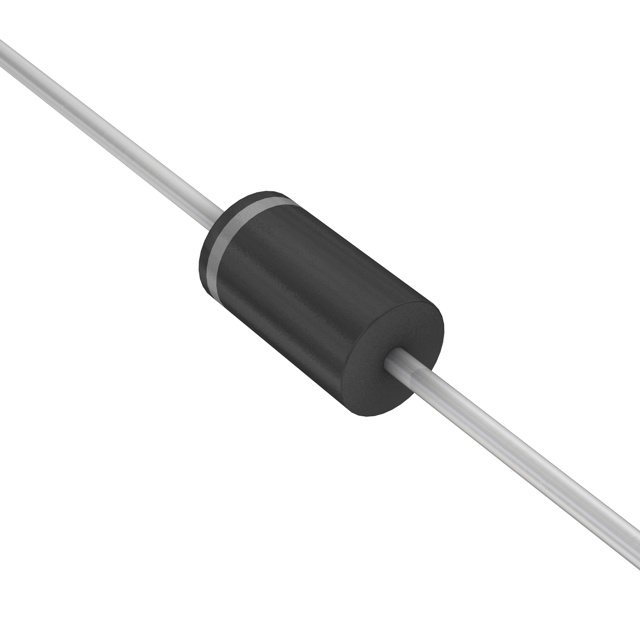

1.5KE16CA

Active

EIC Semiconductor

TVS DIODE 13.6VWM 22.5VC DO201

Deep-Dive with AI

Search across all available documentation for this part.

1.5KE16CA

Active

EIC Semiconductor

TVS DIODE 13.6VWM 22.5VC DO201

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5KE16CA	1.5KE Series

	-	-
Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	67 A	2.5 - 82 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-65 °C	-65 °C
Package / Case	Axial, DO-27, DO-201AA	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	DO-201	DO-201
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	15.2 V	12.4 - 418 V
Voltage - Clamping (Max) @ Ipp	-	18.2 - 602 V
Voltage - Clamping (Max) @ Ipp [Max]	22.5 V	22.5 - 548 V
Voltage - Reverse Standoff (Typ)	13.6 V	11.1 - 376 V

1.5KE Series

TVS DIODE 31.6VWM 56.4VC DO201

Part	Power - Peak Pulse	Power - Peak Pulse	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]
EIC Semiconductor 1.5KE39BULK	1.5 kW	1500 W	Zener	56.4 V	31.6 V	1	DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	26.5 A
EIC Semiconductor 1.5KE13CABULK	1.5 kW	1500 W	Zener		11.1 V		DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	82 A	18.2 V	12.4 V	1
EIC Semiconductor 1.5KE16CA	1.5 kW	1500 W	Zener	22.5 V	13.6 V		DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	67 A		15.2 V	1
EIC Semiconductor 1.5KE43CA	1.5 kW	1500 W	Zener		36.8 V		DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	25.3 A	59.3 V	40.9 V	1
EIC Semiconductor 1.5KE100AT/R	1.5 kW	1500 W	Zener		85.5 V	1	DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	11 A	137 V	95 V
EIC Semiconductor 1.5KE400A	1.5 kW	1500 W	Zener	548 V	342 V	1	DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	2.7 A		380 V
EIC Semiconductor 1.5KE440A	1.5 kW	1500 W	Zener		376 V	1	DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	2.5 A	602 V	418 V
EIC Semiconductor 1.5KE180CA	1.5 kW	1500 W	Zener	246 V	154 V		DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	6.1 A		171 V	1
EIC Semiconductor 1.5KE200AT/R	1.5 kW	1500 W	Zener	274 V	171 V	1	DO-201	Axial, DO-201AA, DO-27	175 ░C	-65 °C	General Purpose	Through Hole	5.5 A		190 V
EIC Semiconductor 1.5KE320ABULK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 0.55
	Cut Tape (CT)	1	$ 0.44
		1	$ 0.43
		10	$ 0.38
		10	$ 0.37
		100	$ 0.26
		100	$ 0.26
		500	$ 0.22
		500	$ 0.20
	Tape & Box (TB)	1250	$ 0.13
		2500	$ 0.12
	Tape & Reel (TR)	1200	$ 0.21
		1250	$ 0.27
		2500	$ 0.24
		6250	$ 0.23
		12500	$ 0.21
		31250	$ 0.21

Description

General part information

1.5KE Series

22.5V Clamp 67A Ipp Tvs Diode Through Hole DO-201
