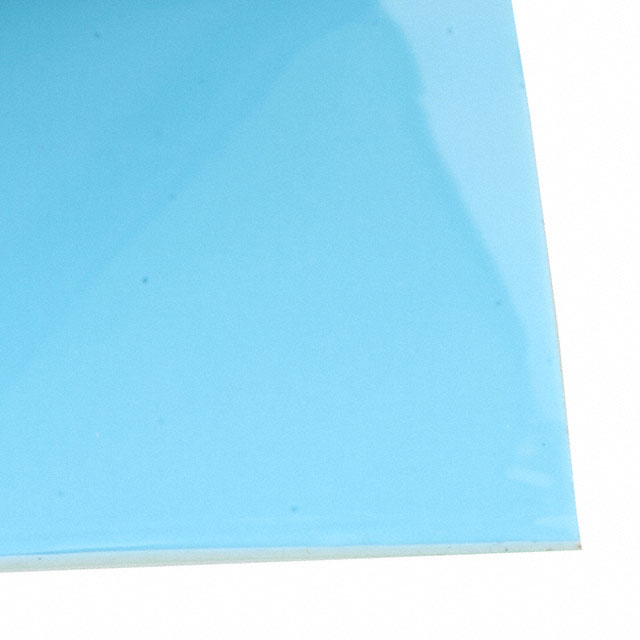

5583S 210 MM X 300 MM X 2.0 MM

Active

3M (TC)

THERM PAD 300MMX210MM WHT

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 300MMX210MM WHT

Technical Specifications

Parameters and characteristics for this part

Specification	5583S 210 MM X 300 MM X 2.0 MM

Adhesive	Tacky - One Side
Backing, Carrier	Polyester
Color	White
Outline [x]	300 mm
Outline [y]	210 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness	0.079 in
Thickness	2 mm
Type	Interface Pad, Sheet

Part	Shelf Life Start	Shape	Outline [x]	Outline [y]	Adhesive	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Thickness	Thickness	Type	Color
3M (TC) 5583S 210 MM X 300 MM X 1.5MM	Date of Manufacture	Rectangular	300 mm	210 mm	Tacky - One Side	Polyester	70 °F	21 °C	12 Months	1.5 mm	0.0591 "	Interface Pad Sheet	White
3M (TC) 5583S 210 MM X 300 MM 1.0 MM	Date of Manufacture	Rectangular	300 mm	210 mm	Tacky - One Side	Polyester	70 °F	21 °C	12 Months	0.991 mm	0.039 in	Interface Pad Sheet	White
3M (TC) 5583S 210 MM X 300 MM X 0.5MM	Date of Manufacture	Rectangular	300 mm	210 mm	Tacky - One Side	Polyester	70 °F	21 °C	12 Months	0.5 mm	0.0197 in	Interface Pad Sheet	White
3M (TC) 5583S 210 MM X 300 MM X 2.5MM	Date of Manufacture	Rectangular	300 mm	210 mm	Tacky - One Side	Polyester	70 °F	21 °C	12 Months	2.489 mm	0.098 in	Interface Pad Sheet	White
3M (TC) 5583S 210 MM X 300 MM X 2.0 MM	Date of Manufacture	Rectangular	300 mm	210 mm	Tacky - One Side	Polyester	70 °F	21 °C	12 Months	2 mm	0.079 in	Interface Pad Sheet	White
