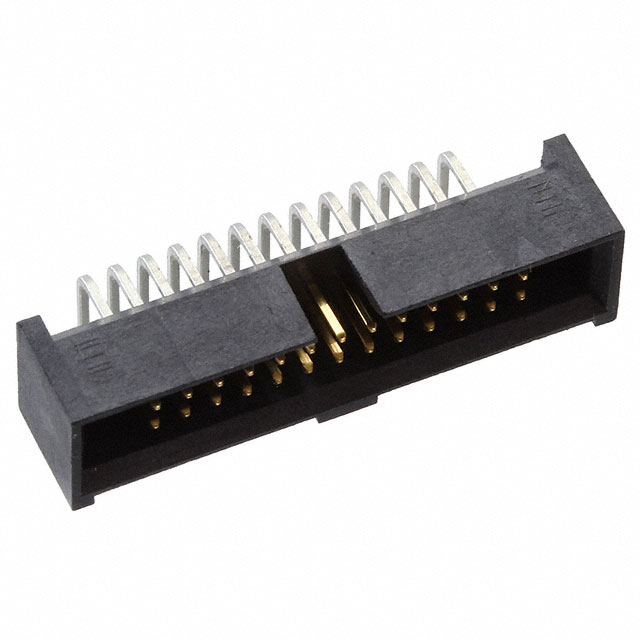

SHF-113-01-L-D-RA

Active

Samtec Inc.

CONN HEADER R/A 26POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsShrouded Terminal Strip, 0.050" pitch SHF-102-01-L-D-SM Datasheet 02 +1

SHF-113-01-L-D-RA

Active

Samtec Inc.

CONN HEADER R/A 26POS 1.27MM

Deep-Dive with AI

DocumentsShrouded Terminal Strip, 0.050" pitch SHF-102-01-L-D-SM Datasheet 02 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SHF-113-01-L-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	2.16 mm
Contact Length - Post	0.085 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

SHF-113 Series

Part	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Color	Contact Type	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Shrouding	Termination	Material Flammability Rating	Connector Type	Mounting Type	Style	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. SHF-113-01-F-D-SM-K-TR	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	3 µin	0.076 µm	26	Keying Slot Pick and Place	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Surface Mount	Board to Cable/Wire	2
Samtec Inc. SHF-113-01-L-D-SM	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	10 çin	0.25 çm	26	Keying Slot	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Surface Mount	Board to Cable/Wire	2
Samtec Inc. SHF-113-01-L-D-SM-LC-K-TR	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	10 çin	0.25 çm	26	Board Lock Keying Slot Pick and Place	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Surface Mount	Board to Cable/Wire	2
Samtec Inc. SHF-113-01-S-D-TH	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in			26	Keying Slot	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Through Hole	Board to Cable/Wire	2	0.075 in	1.91 mm
Samtec Inc. SHF-113-01-F-D-TH-LC	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	3 µin	0.076 µm	26	Board Lock Keying Slot	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Through Hole	Board to Cable/Wire	2	0.075 in	1.91 mm
Samtec Inc. SHF-113-01-S-D-SM-LC-TR	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in			26	Board Lock Keying Slot	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Surface Mount	Board to Cable/Wire	2
Samtec Inc. SHF-113-01-L-D-RA	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.6 mm	0.22 in	10 çin	0.25 çm	26	Keying Slot	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Through Hole Right Angle	Board to Cable/Wire	2		2.16 mm	0.085 in
Samtec Inc. SHF-113-01-L-D-TH-TR	3.05 mm	0.12 in	Square	Liquid Crystal Polymer (LCP)	5.33 mm	0.21 in	10 çin	0.25 çm	26	Keying Slot	0.05 in	1.27 mm	Phosphor Bronze	-55 °C	125 °C	3 A	Black	Male Pin	Push-Pull	Gold	All	0.05 in	1.27 mm	Tin	Shrouded - 4 Wall	Solder	UL94 V-0	Header	Through Hole	Board to Cable/Wire	2	0.075 in	1.91 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.31
		25	$ 3.89
		50	$ 3.62
		100	$ 3.60

Description

General part information

SHF-113 Series

Connector Header Through Hole, Right Angle 26 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Shrouded Terminal Strip, 0.050" pitch

SHF-102-01-L-D-SM Datasheet 02

Datasheet
