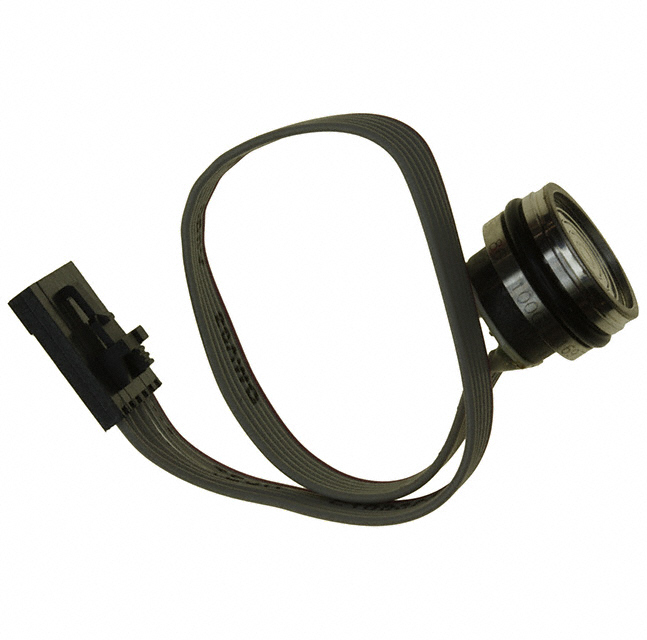

86-100G-C

Active

TE Connectivity Measurement Specialties

SENSOR 100PSIG 0.1V

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 100PSIG 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Applications	Output Type	Operating Pressure	Operating Pressure	Port Style	Package / Case	Features	Output [Min]	Output [Max]	Accuracy	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties 86-100G-R	Cable with Connector	Board Mount	Wheatstone Bridge	689.48 kPa	100 PSI	No Port	Cylinder	Temperature Compensated	0 mV	100 mV	0.1 %	Vented Gauge	125 °C	-40 °C	2068.43 kPa	300 PSI
TE Connectivity Measurement Specialties 86-100G-C	Cable with Connector	Board Mount	Wheatstone Bridge	689.48 kPa	100 PSI	No Port	Cylinder	Temperature Compensated	0 mV	100 mV	0.1 %	Vented Gauge	125 °C	-40 °C	2068.43 kPa	300 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 70.96

General part information

Pressure Sensor 100PSI (689.48kPa) Vented Gauge 0 mV ~ 100 mV Cylinder

Technical documentation and resources

No documents available
