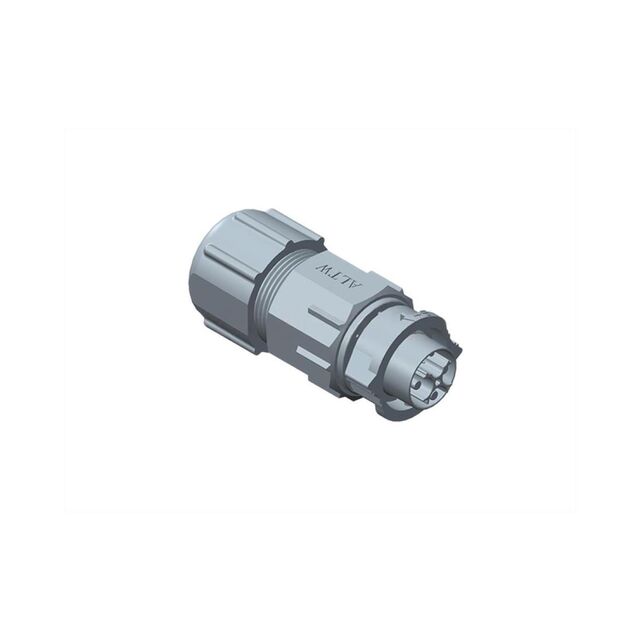

DCD-06BFMB-QL8001
ActiveAmphenol LTW
XLOK, D-20A+5A, 06P, CABLE W/O S
Deep-Dive with AI
Search across all available documentation for this part.
DCD-06BFMB-QL8001
ActiveAmphenol LTW
XLOK, D-20A+5A, 06P, CABLE W/O S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCD-06BFMB-QL8001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [diameter] | 0.571 in |
| Cable Opening [Max] [diameter] | 14.5 mm |
| Cable Opening [Min] [diameter] | 8 mm |
| Cable Opening [Min] [diameter] | 0.315 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 20 A |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 23.23 | |
Description
General part information
DCD-06BFMB Series
6 Position Circular Connector Plug, Male Pins Screw
Documents
Technical documentation and resources
No documents available
