AWH 14G-E232-IDC

Active

Assmann WSW Components

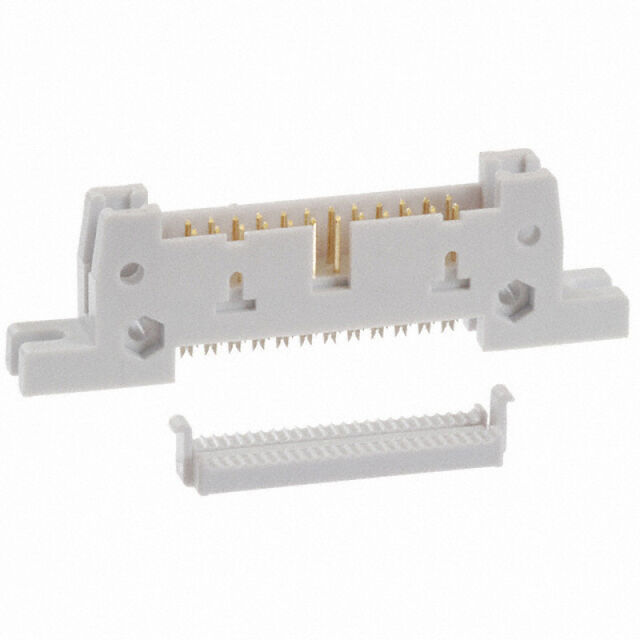

CONN HEADER 14POS IDC GOLD

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN HEADER 14POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Material Flammability Rating	Number of Positions Loaded	Shrouding	Contact Finish - Mating	Number of Positions	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Connector Type	Style	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Features	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Shape	Mounting Type	Contact Type	Current Rating (Amps)	Number of Rows	Contact Finish Thickness - Mating	Color	Contact Finish	Pitch [x]	Pitch [x]	Cable Termination	Wire Type	Row Spacing [x]	Row Spacing
Assmann WSW Components AWH14G-0202-T-R	UL94 V-0	All	Shrouded - 4 Wall	Gold	14	Brass	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Board to Cable/Wire	17 mm	0.669 "	Tin	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	Gray	Solder	Keying Slot	Push-Pull	0.13 in	3.3 mm	Square	Through Hole	Male Pin	3 A	2	Flash
Assmann WSW Components AWH 14G-E202-IDC					14						Header										Feed Through						Male Pin		2		Gray	Gold	2.54 mm	0.1 in	IDC	Ribbon Cable	0.1 in	2.54 mm
Assmann WSW Components AWH 14G-E232-IDC					14						Header										Feed Through	Latch Lock/Eject Hooks Long					Male Pin		2		Gray	Gold	2.54 mm	0.1 in	IDC	Ribbon Cable	0.1 in	2.54 mm
Assmann WSW Components AWH14G-E232-IDC-R					14						Header										Feed Through	Latch Lock/Eject Hooks Long					Male Pin		2		Gray	Gold	2.54 mm	0.1 in	IDC	Ribbon Cable	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Header Connector IDC Gold
