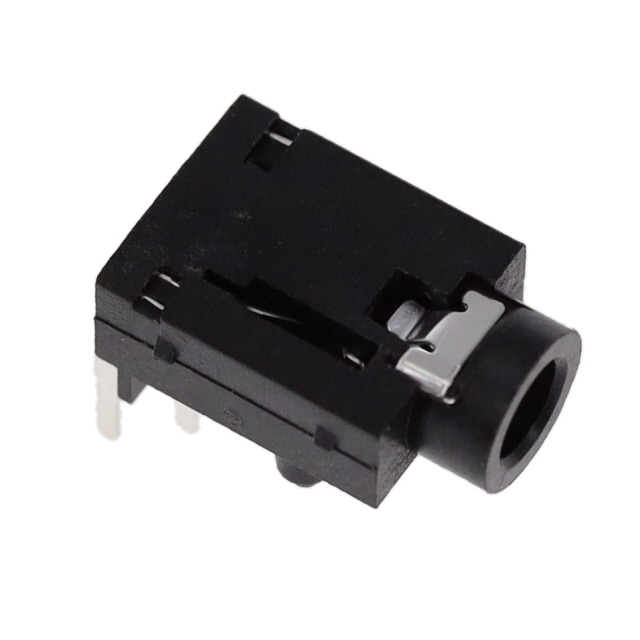

ASJ-195-L-HT
ActiveAdam Tech
AUDIO JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-195-L-HT |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.29 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.88 | |||
| 40 | $ 0.83 | |||
| 80 | $ 0.77 | |||
| 230 | $ 0.69 | |||
| 440 | $ 0.64 | |||
| 945 | $ 0.59 | |||
| 2400 | $ 0.54 | |||
Description
General part information
ASJ-195 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
