HCS2-01

Active

Essentra Access Solutions

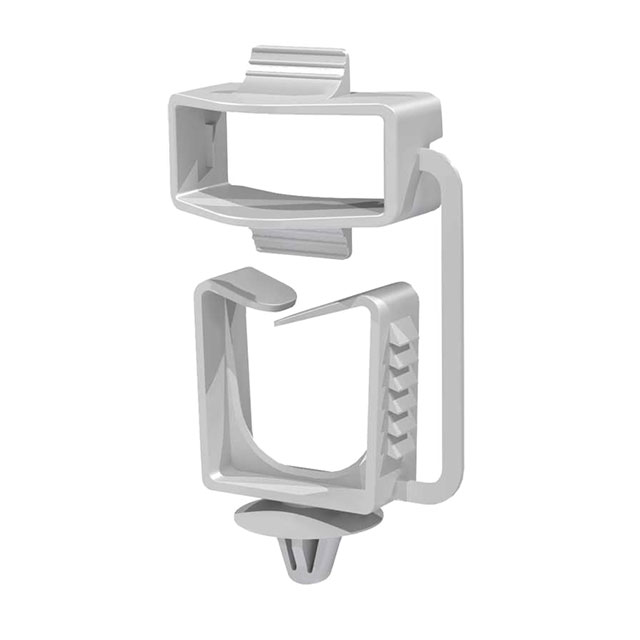

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	HCS2-01

Color	Natural
Height [z]	1.129 in
Height [z]	28.68 mm
Length	1.22 in
Length	30.99 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [Max]	15.98 mm
Opening Size [Max] [z]	0.629 in
Opening Size [Min]	3 mm
Opening Size [Min] [z]	0.118 in
Panel Hole Size [Max]	6.78 mm
Panel Hole Size [Max]	0.267 "
Panel Hole Size [Min]	0.236 in
Panel Hole Size [Min]	5.99 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	0.024 in
Panel Thickness [Min]	0.6 mm
Type	Clip, Wire Saddle
Type Attributes	Top Lock Retaining Bar, Hinged

Part	Length	Length	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Mounting Type	Opening Size [Max]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min]	Material	Color	Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Type Attributes	Height [z]	Height [z]	Material Flammability Rating
Essentra Access Solutions HCS2-01	1.22 in	30.99 mm	6.78 mm	0.236 in	5.99 mm	0.267 "	Arrowhead Winged	15.98 mm	0.629 in	0.118 in	3 mm	Polyamide (PA66) Nylon 6/6	Natural	Clip Wire Saddle	2.5 mm	0.024 in	0.6 mm	0.098 in	Hinged Top Lock Retaining Bar	1.129 in	28.68 mm	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 0.74

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.118" ~ 0.629" (3.00mm ~ 15.98mm)
