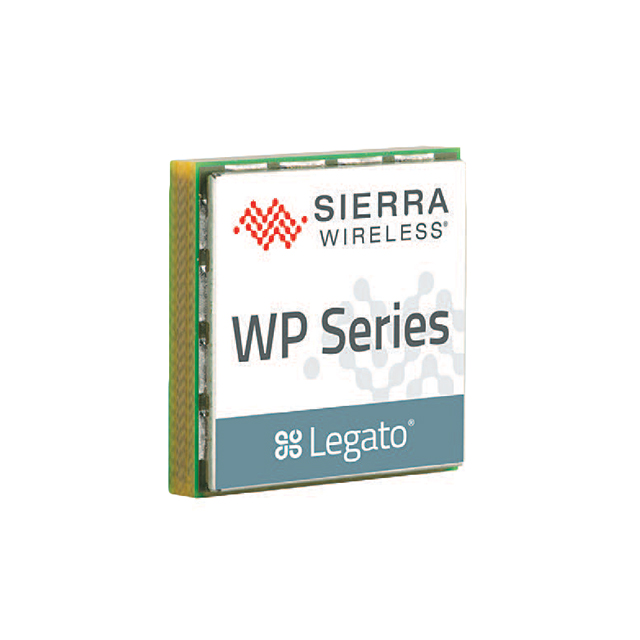

WP8548_1103113

Obsolete

Sierra Wireless

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP8548_1103113	WP8548 Series

Antenna Type	-	Antenna Not Included, Castellation
Data Rate	42 Mbps	42 Mbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz	850 - 1900 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Protocol	EDGE, HSPA+, Galileo, GPS, GSM, GLONASS, GNSS, GPRS, UMTS	EDGE, HSPA+, Galileo, GPS, GSM, GLONASS, GNSS, GPRS, UMTS
RF Family/Standard	Cellular	Cellular
Serial Interfaces	UART, USB	ADC, UART, I2C, GPIO, USB

RF TXRX MOD CELL CAST IOT SMD

Part	Data Rate	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Antenna Type	Protocol	Serial Interfaces	RF Family/Standard	Frequency
Sierra Wireless WP8548-G_1103552	42 Mbps	Module	85 °C	-40 °C	Surface Mount	Antenna Not Included, Castellation	EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, UMTS	ADC, GPIO, I2C, UART, USB	Cellular	850 MHz, 900 MHz, 1800 MHz, 1900 MHz
Sierra Wireless WP8548_1103113	42 Mbps	Module	85 °C	-40 °C	Surface Mount		EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, UMTS	UART, USB	Cellular	850 MHz, 900 MHz, 1800 MHz, 1900 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular EDGE, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA+, UMTS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Surface Mount
