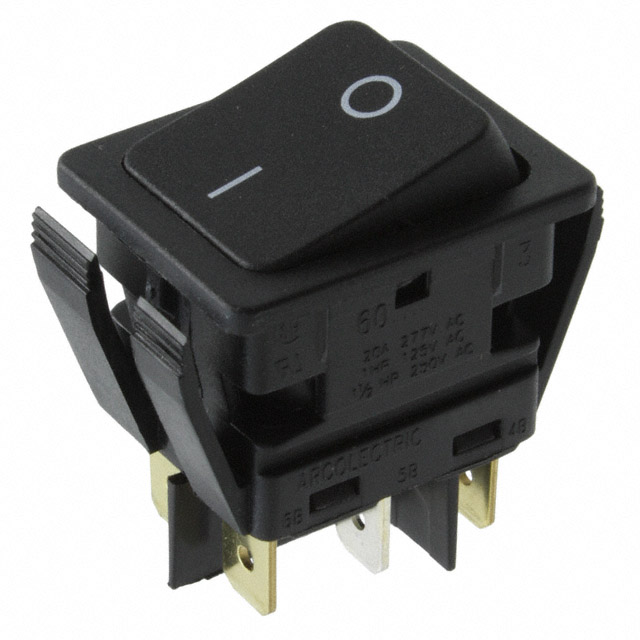

C6060ALBB-1197W-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 20A 277V
Deep-Dive with AI
Search across all available documentation for this part.
C6060ALBB-1197W-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 20A 277V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C6060ALBB-1197W-B |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Flat |
| Approval Agency | UL, ENEC, CSA |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Features | Antimicrobial |
| Ingress Protection | Splash Proof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 10.78 | |
Description
General part information
C6060AL Series
Rocker Switch DPDT 20A (AC) 277 V Panel Mount, Snap-In
Documents
Technical documentation and resources
