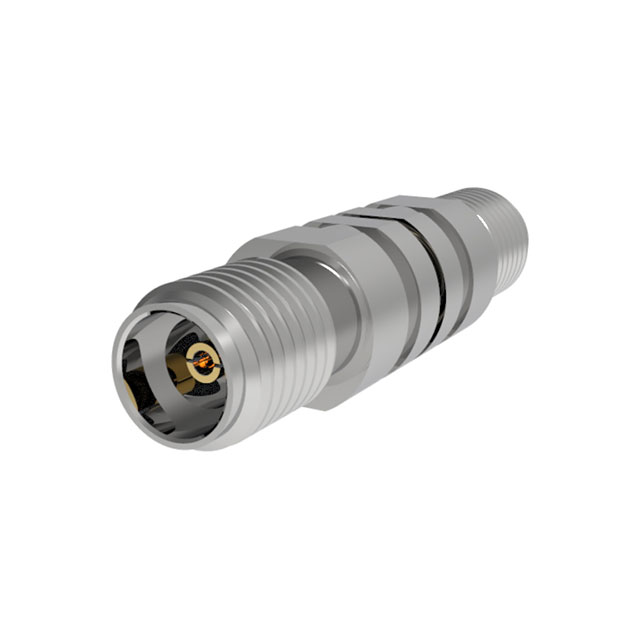

TMA-5FS-5FS-00

Active

CarlisleIT

MW ADAPTER 3.5(F) TO 3.5(F)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 3.5(F) TO 3.5(F)

Technical Specifications

Parameters and characteristics for this part

MW ADAPTER 3.5(F) TO 3.5(F)

Part	Conversion Type	Adapter Type	Convert From (Adapter End)	Convert To (Adapter End)	Center Contact Material	Adapter Series [Min]	Adapter Series [Max]	Body Material	Frequency - Max [Max]	Impedance	Mounting Type	Style	Center Gender
CarlisleIT TMA-5FS-5FS-00	Same Series	Jack to Jack	3.5mm Jack, Female Socket	3.5mm Jack, Female Socket	Beryllium Copper	3.5 mm	3.5 mm	Stainless Steel	26.5 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 3.5mm Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms

Technical documentation and resources
