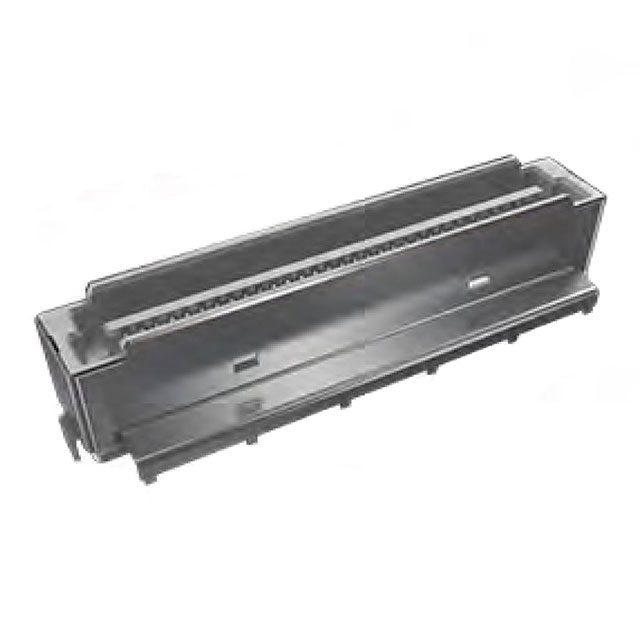

10147213-644406LF
ActiveAmphenol ICC (FCI)
BERGSTAK SHIELDED 0.8MM HDR
Deep-Dive with AI
Search across all available documentation for this part.
10147213-644406LF
ActiveAmphenol ICC (FCI)
BERGSTAK SHIELDED 0.8MM HDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10147213-644406LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Mated Stacking Heights | 12 mm, 16 mm, 20 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.56 | |
| 10 | $ 2.72 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.27 | |||
| 100 | $ 2.10 | |||
| Digi-Reel® | 1 | $ 3.56 | ||
| 10 | $ 2.72 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.27 | |||
| 100 | $ 2.10 | |||
| Tape & Reel (TR) | 270 | $ 1.89 | ||
| 540 | $ 1.76 | |||
| 810 | $ 1.69 | |||
| 1350 | $ 1.61 | |||
| 1890 | $ 1.55 | |||
| 2700 | $ 1.50 | |||
| 6750 | $ 1.41 | |||
Description
General part information
10147213 Series
64 Position Connector Plug, Center Strip Contacts Surface Mount Gold
