RT4501WSC

Active

Richtek USA Inc.

IC LED DRV RGLTR PWM 10WLCSP

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC LED DRV RGLTR PWM 10WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	RT4501WSC

Applications	Backlight
Current - Output / Channel [custom]	20 mA
Dimming	PWM
Frequency	1.1 MHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-UFBGA, WLCSP
Supplier Device Package	10-WLCSP
Supplier Device Package [x]	0.87
Supplier Device Package [y]	2.07
Topology	Step-Up (Boost)
Type	DC DC Regulator
Voltage - Output	23 V
Voltage - Supply (Max)	5.5 V
Voltage - Supply (Min) [Min]	2.5 V

IC LED DRV RGLTR PWM 10WLCSP

Part	Voltage - Supply (Max)	Dimming	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Type	Number of Outputs	Topology	Frequency	Voltage - Output	Current - Output / Channel [custom]	Package / Case	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Min) [Min]	Internal Switch(s)
Richtek USA Inc. RT4501WSC	5.5 V	PWM	2.07	10-WLCSP	0.87	DC DC Regulator	2	Step-Up (Boost)	1.1 MHz	23 V	20 mA	10-UFBGA, WLCSP	Backlight	Surface Mount	85 °C	-40 °C	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

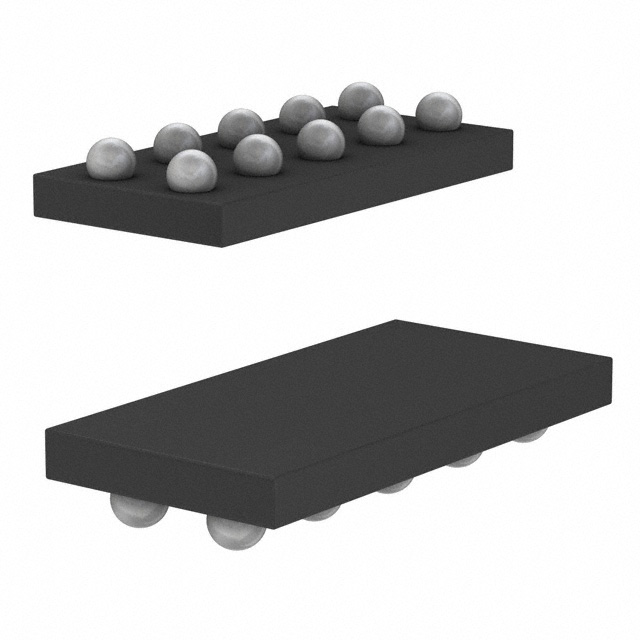

LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) PWM Dimming 20mA 10-WLCSP (0.87x2.07)
