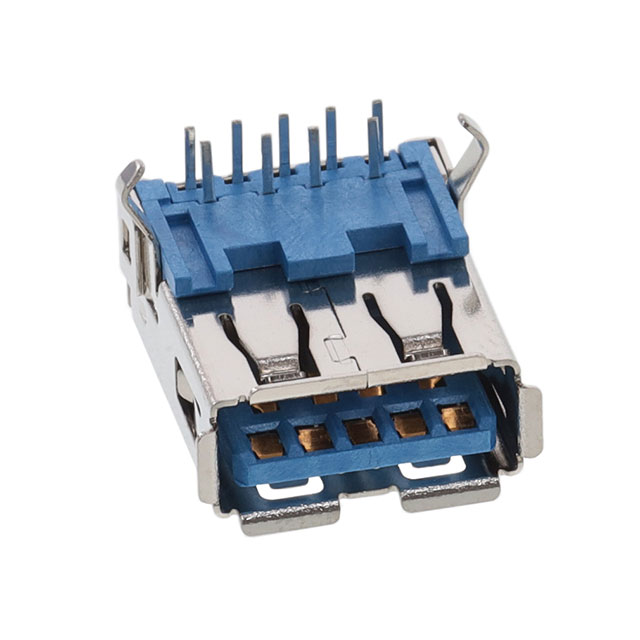

SS-52000-001
ActiveBEL MAGNETIC SOLUTIONS
CONN RCPT USB3.0 TYPEA 9POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
SS-52000-001
ActiveBEL MAGNETIC SOLUTIONS
CONN RCPT USB3.0 TYPEA 9POS R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-52000-001 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.23 | |
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 40 | $ 0.98 | |||
| 80 | $ 0.94 | |||
| 230 | $ 0.85 | |||
| 440 | $ 0.77 | |||
| 945 | $ 0.68 | |||
| 2400 | $ 0.62 | |||
Description
General part information
SS-52000 Series
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
