Description
General part information
6ES72151 Series

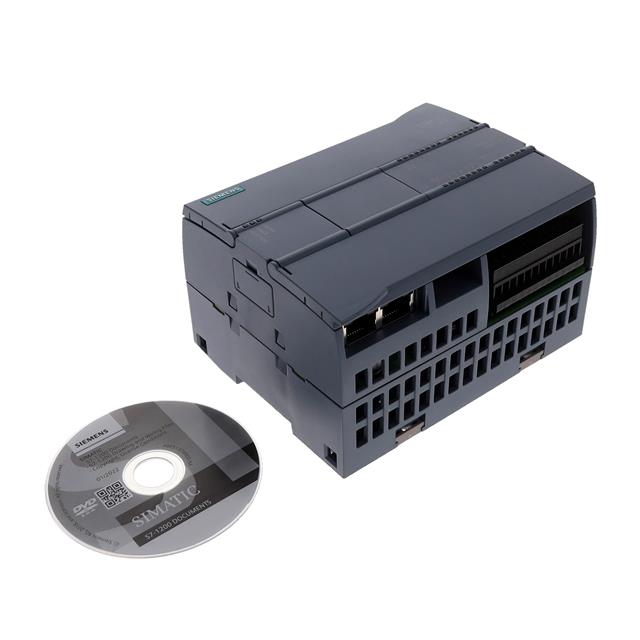

The Siemens 6ES72151AG400XB0 is designed for industrial automation and control applications. It operates with a supply voltage range of 20.4 to 28.8V DC and features 14 digital inputs and 10 digital outputs, including 4 high-speed pulse train outputs. The device supports programming in LAD, FBD, and SCL languages and is IEC 61000-4-6 compliant. It offers 125kB of working memory and 4MB of load memory. With certifications including CE, UL, and FM, it ensures reliability and safety for various industrial environments.
Technical Specifications
Parameters and characteristics for this part
| Specification | 6ES72151AG400XB0 |
|---|---|
| Approval Agency | UL, KC, CE, FM, RCM, cULus |
| Display Type | No Display |
| Expandable | Non-Expandable |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Memory Size | 1 Mbit |
| Mounting Type | Panel Mount |
| Number of Inputs | 14 |
| Number of Outputs | 10 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Pulse (4) |
| Voltage - Supply (Maximum) | 28.8 VDC |
| Voltage - Supply (Minimum) | 20.4 V |
