Technical Specifications
Parameters and characteristics for this part
| Specification | T2080172101-000 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | DDM, CDM |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 17+Ground |
| Size | H8A |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.74 | |
| 10 | $ 3.28 | |||
| 30 | $ 3.19 | |||
| 50 | $ 3.12 | |||
| 100 | $ 3.02 | |||
Description
General part information
HDC HQ Series

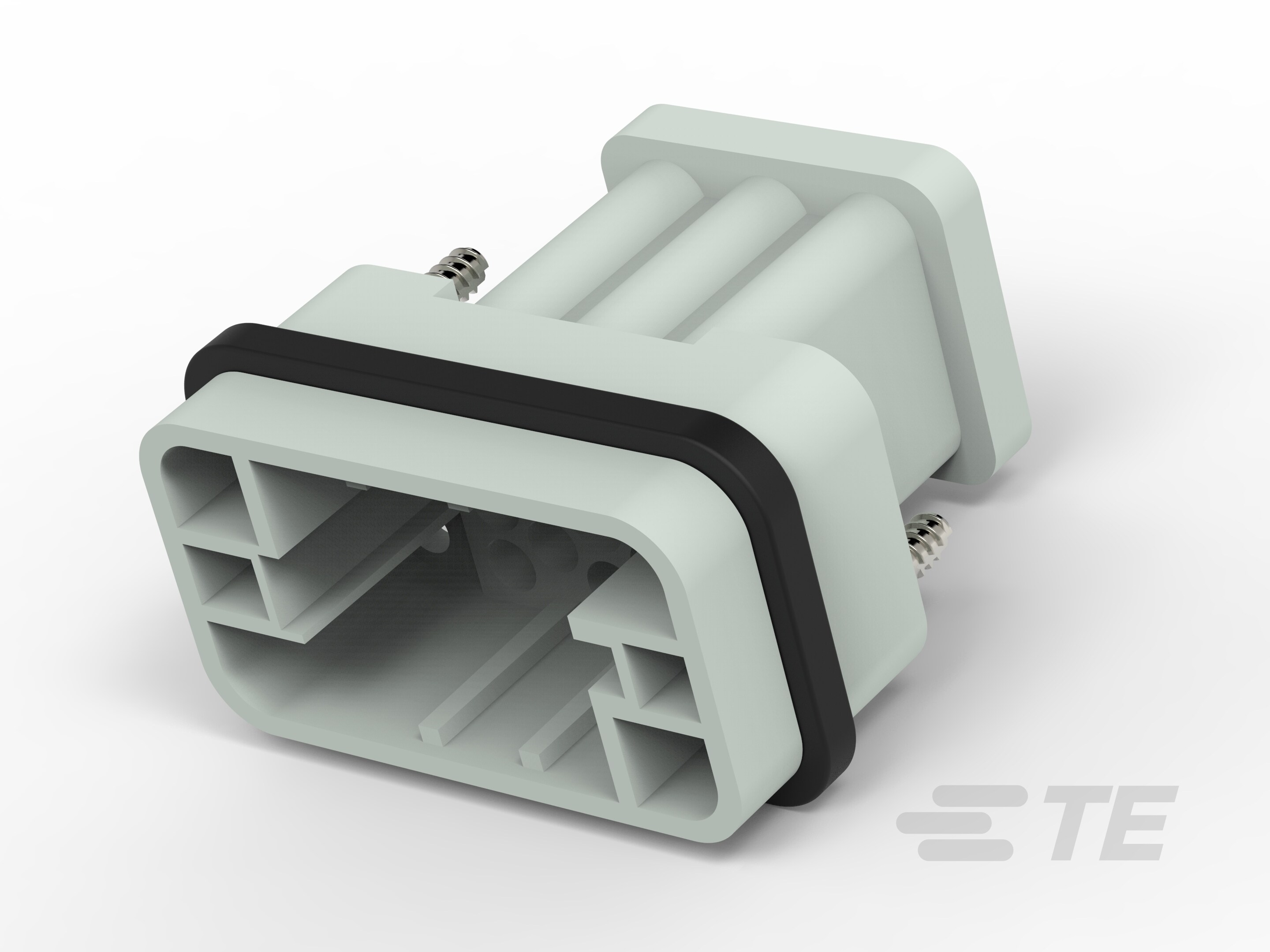

Male Insert without Contacts Gray 17+Ground Position Crimp
