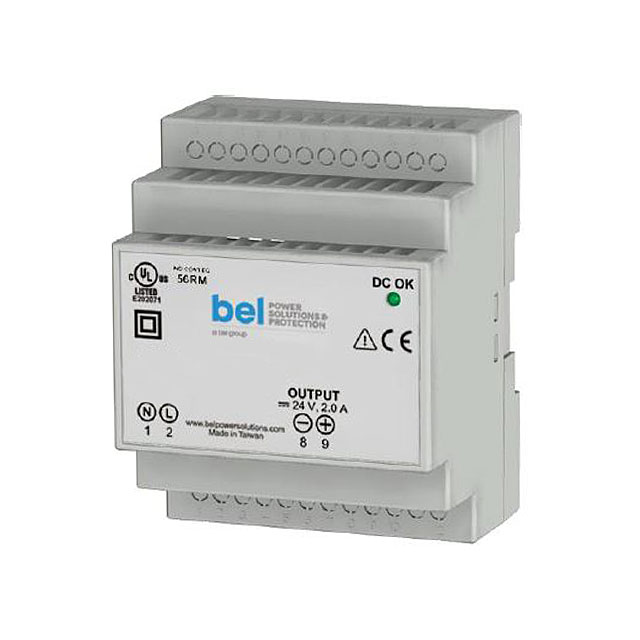

LDN40-24

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 2A 40W 24-PIN

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 2A 40W 24-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	3	$ 72.80
Digikey	Box	1	$ 87.40
		10	$ 81.16

General part information

AC/DC POWER SUPPLY SINGLE-OUT 24V 2A 40W 24-PIN

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	LDN40-24	LDN40 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	90 VAC	90 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	CE
Current - Output (Max) [Max]	2 A	2 - 4 A
Efficiency	85 %	80 - 85 %
Features	Load Sharing, IP20, Adjustable Output, Universal Input	Load Sharing, IP20, Adjustable Output, Universal Input
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	70 °C
Power (Watts)	40 W	20 - 40 W
Size / Dimension [x]	2.42 "	2.42 "
Size / Dimension [x]	61.5 mm	61.5 mm
Size / Dimension [y]	72 mm	72 mm
Size / Dimension [y]	2.83 in	2.83 in
Size / Dimension [z]	3.54 "	3.54 "
Size / Dimension [z]	90 mm	90 mm
Voltage - Isolation	4.2 kV	4.2 kV
Voltage - Output 1	24 V	5 - 24 V

AC/DC POWER SUPPLY SINGLE-OUT 24V 2A 40W 24-PIN

Part	Applications	Power (Watts)	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Voltage - Output 1	Efficiency	Voltage - Isolation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency
Bel Power Solutions LDN40-24	ITE (Commercial)	40 W	1	72 mm	3.54 "	90 mm	2.42 "	2.83 in	61.5 mm	2 A	90 VAC	264 VAC	AC	24 V	85 %	4.2 kV	Adjustable Output, IP20, Load Sharing, Universal Input
Bel Power Solutions LDN40-5	ITE (Commercial)	20 W	1	72 mm	3.54 "	90 mm	2.42 "	2.83 in	61.5 mm	4 A	90 VAC	264 VAC	AC	5 V	80 %	4.2 kV	Adjustable Output, IP20, Load Sharing, Universal Input	-40 °C	70 °C	CE
