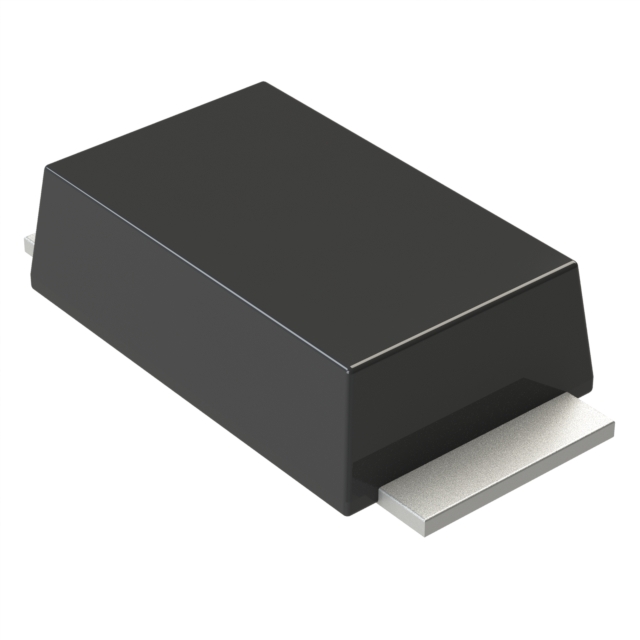

CMS04(TE12L)

Obsolete

Toshiba Semiconductor and Storage

DIODE SCHOTTKY 30V 5A MFLAT

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

DIODE SCHOTTKY 30V 5A MFLAT

Technical Specifications

Parameters and characteristics for this part

Specification	CMS04(TE12L)

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	8 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	SOD-128
Speed	200 mA, 500 ns
Supplier Device Package	M-FLAT (2.4x3.8)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V

Part	Package / Case	Current - Reverse Leakage @ Vr	Technology	Speed	Supplier Device Package	Current - Average Rectified (Io)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Toshiba Semiconductor and Storage CMS04(TE12L)	SOD-128	8 mA	Schottky	200 mA 500 ns	M-FLAT (2.4x3.8)	5 A	Surface Mount	30 V	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 30 V 5A Surface Mount M-FLAT (2.4x3.8)
