2153111043

Active

MIZU-P25 FEMALE-TO-PIGTAIL OFF-THE-SHELF (OTS) CABLE ASSEMBLY, 2.50MM PITCH, WATERPROOF, SINGLE ROW, 600.00MM LENGTH, TIN (SN) PLATING, 4 CIRCUITS, BLACK

Find alt

Alpha

2153111043

Active

Molex

MIZU-P25 FEMALE-TO-PIGTAIL OFF-THE-SHELF (OTS) CABLE ASSEMBLY, 2.50MM PITCH, WATERPROOF, SINGLE ROW, 600.00MM LENGTH, TIN (SN) PLATING, 4 CIRCUITS, BLACK

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

215311 Series

Mizu-P25 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Waterproof, Single Row, 300.00mm Length, Tin (Sn) Plating, 4 Circuits, Black

Technical Specifications

Parameters and characteristics for this part

Specification	2153111043

Cable Termination	Crimp
Color	Black, Individual
Connector Type	Socket to Individual Wire Leads
Contact Finish	Tin
Features	Latch Lock
Length	1.97 ft
Number of Positions	4
Number of Rows	1
Pitch - Connector	0.098 in
Shielding	Unshielded

215311 Series

Mizu-P25 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Waterproof, Single Row, 300.00mm Length, Tin (Sn) Plating, 4 Circuits, Black

Part	Cable Termination	Color	Connector Type	Number of Rows	Length	Features	Pitch - Connector	Number of Positions	Contact Finish	Shielding
Molex 2153111041	Crimp	Black Individual	Socket to Individual Wire Leads	1	0.492 ft	Latch Lock	0.098 in	4	Tin	Unshielded

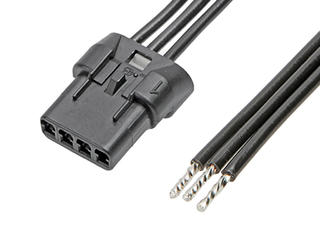

Molex 2153111032	Crimp	Black Individual	Socket to Individual Wire Leads	1	0.984 ft	Latch Lock	0.098 in	3	Tin	Unshielded
Molex 2153111031	Crimp	Black Individual	Socket to Individual Wire Leads	1	0.492 ft	Latch Lock	0.098 in	3	Tin	Unshielded
Molex 2153111043	Crimp	Black Individual	Socket to Individual Wire Leads	1	1.97 ft	Latch Lock	0.098 in	4	Tin	Unshielded
Molex 2153111022	Crimp	Black Individual	Socket to Individual Wire Leads	1	0.984 ft	Latch Lock	0.098 in	2	Tin	Unshielded

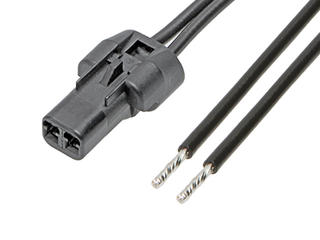

Molex 2153111021	Crimp	Black Individual	Socket to Individual Wire Leads	1	0.492 ft	Latch Lock	0.098 in	2	Tin	Unshielded
Molex 2153111042	Crimp	Black Individual	Socket to Individual Wire Leads	1	0.984 ft	Latch Lock	0.098 in	4	Tin	Unshielded
Molex 2153111023	Crimp	Black Individual	Socket to Individual Wire Leads	1	1.97 ft	Latch Lock	0.098 in	2	Tin	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing
