1N1124A

Active

Microchip Technology

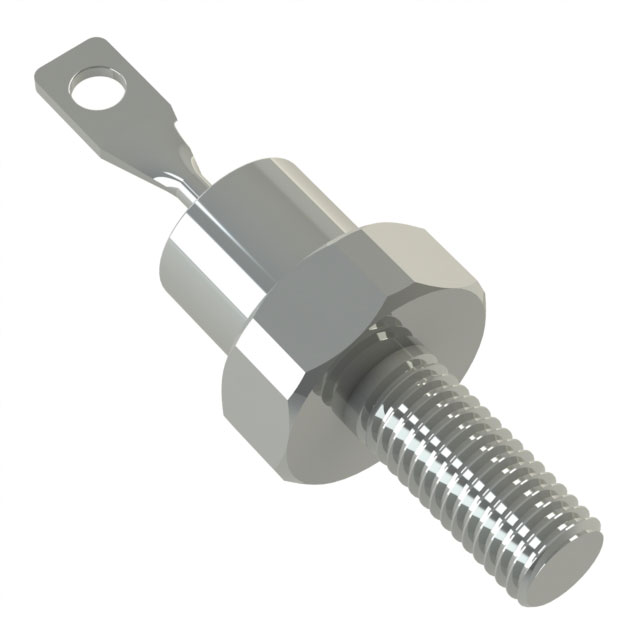

RECTIFIER DIODE SWITCHING 2-PIN 200V, 3.3A DO-4 TRAY

Search across all available documentation for this part.

Active

Microchip Technology

RECTIFIER DIODE SWITCHING 2-PIN 200V, 3.3A DO-4 TRAY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N1124A	1N1124A-Rectifier Series

	-	-
Current - Average Rectified (Io)	3.3 A	3.3 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Mounting Type	Stud Mount	Stud Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-65 C	-65 C
Package / Case	Stud, DO-203AA, DO-4	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	DO-203AA	DO-203AA
Supplier Device Package	DO-4	DO-4
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	2.2 V	2.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 33.27
Microchip Direct	N/A	1	$ 35.83
Newark	Each	100	$ 33.27
		500	$ 31.99

Rectifier Diode Switching 2-Pin 200V, 3.3A DO-4 Tray

Part	Supplier Device Package	Supplier Device Package	Current - Reverse Leakage @ Vr	Package / Case	Speed	Speed	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
Microchip Technology 1N1124A	DO-203AA	DO-4	5 µA	DO-203AA, DO-4, Stud	Standard Recovery >500ns	200 mA	Standard	150 °C	-65 C	Stud Mount	3.3 A	200 V	2.2 V
Microchip Technology 1N1124A

General part information

undefined

Technical documentation and resources
