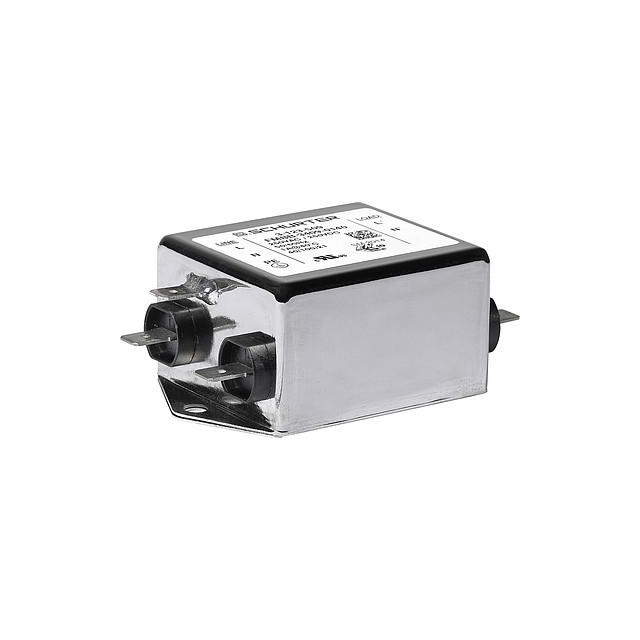

FMBB-33MC-1240

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 12A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMBB-33MC-1240

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 12A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.72
		10	$ 42.21
		20	$ 38.07
		30	$ 38.31
		50	$ 36.62
		100	$ 35.41

Description

General part information

FMBB Series

Single Phase EMC/EMI Line Filter 12 A 125V, 250V 50/60Hz Two Stage Quick Connect

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMBB-33MC-1240	FMBB Series

Applications	Medical	General Purpose, Medical, Power Drive Systems, Inverters
Approval Agency	cURus, VDE, ENEC	cURus, VDE, ENEC
Configuration	Two Stage	Two Stage
Current	12 A	1 - 36 A
Filter Type	Single Phase	Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	3.5 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature	-	-25 - 100 °C
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Quick Connect	Quick Connect, Threaded Post (M4), Terminal Block
Voltage - Rated AC	125 V, 250 V	125 - 250 V

FMBB Series

LINE FILTER 125V/250VAC 20A CHAS

Part	Current	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Voltage - Rated AC	Applications	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Configuration
SCHURTER Inc. FMBB-34ME-2040	20 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	General Purpose	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-3409-0640	6 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	General Purpose	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-36MC-1040	10 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	Medical	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-3309-0340	3 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	Medical	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-34MC-1040	10 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	General Purpose	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-34MC-1240	12 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	General Purpose	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-33MC-1240	12 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	Medical	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-3609-0140	1 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	Medical	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-33MC-1040	10 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	Medical	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
SCHURTER Inc. FMBB-33ME-2040	20 A	Quick Connect	60 Hz	50 Hz	Single Phase	125 V, 250 V	Medical	cURus, ENEC, VDE	100 °C	-40 °C	Chassis Mount	Two Stage
