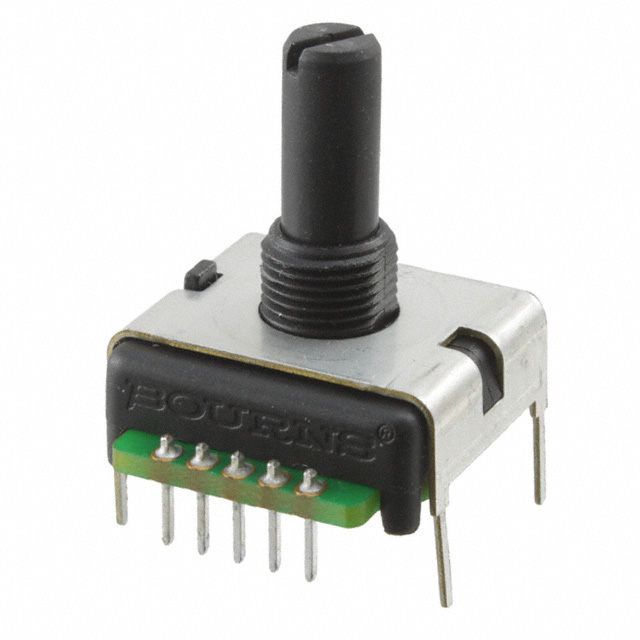

EAW0J-B24-BE0128L
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 128PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAW0J-B24-BE0128L
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 128PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAW0J-B24-BE0128L |
|---|---|
| Actuator Type | 1/4" Dia Slotted End |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Mechanical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | True |
| Pulses per Revolution | 128 |
| Rotational Life (Cycles Min) [Min] | 50K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.60 | |
| 5 | $ 10.82 | |||
| 10 | $ 10.13 | |||
| 25 | $ 9.29 | |||
| 45 | $ 8.67 | |||
| 90 | $ 8.16 | |||
| 270 | $ 7.48 | |||
| 450 | $ 7.02 | |||
| 945 | $ 6.63 | |||
Description
General part information
EAW0J Series
Rotary Encoder Mechanical 128 Binary (Absolute) Vertical
