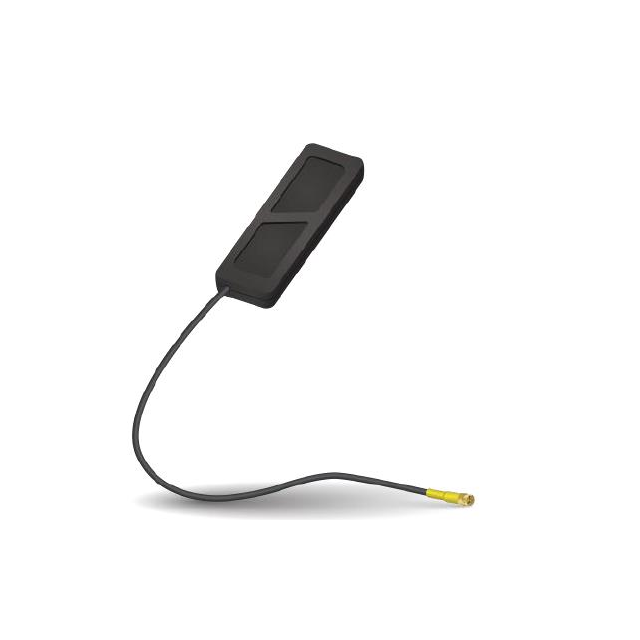

X1005323-W3A1SA10A1

Active

KYOCERA AVX

WIFI ANTENNA

Search across all available documentation for this part.

Active

KYOCERA AVX

WIFI ANTENNA

Technical Specifications

Parameters and characteristics for this part

WIFI ANTENNA

Part	Number of Bands	VSWR	Antenna Type	RF Family/Standard	Applications	Ingress Protection	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Gain	Features
KYOCERA AVX X1005323-W3A1SA10A1	2	2	Module	WiFi	Wi-Fi	IPX7	2.4 GHz, 5.15 GHz	2.5 GHz, 5.825 GHz	2.45 GHz, 5.4875 GHz	Adhesive	0.264 in	6.7 mm	4 GHz	2 GHz	3 GHz	2.5 dBi, 3.3 dBi	Cable - 1m, LNA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Wi-Fi Module SMA Male Adhesive
