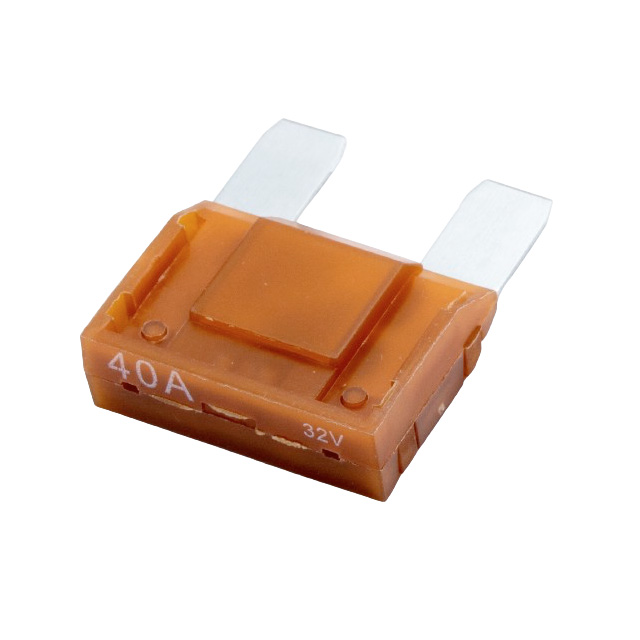

ANX-40A

Active

OptiFuse

FUSE AUTO 40A 32VDC BLADE MAX

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 40A 32VDC BLADE MAX

Technical Specifications

Parameters and characteristics for this part

Specification	ANX-40A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Current Rating (Amps)	40 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Max
Response Time	Fast Blow
Size / Dimension [x]	1.142 inches
Size / Dimension [x]	29 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	8.9 mm
Size / Dimension [z]	0.85 "
Size / Dimension [z]	21.6 mm
Voltage Rating - DC	32 V

FUSE AUTO 40A 32VDC BLADE MAX

Part	Voltage Rating - DC	Current Rating (Amps)	Fuse Type	Package / Case	Mounting Type	Approval Agency	Breaking Capacity @ Rated Voltage	Response Time	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
OptiFuse ANX-40A	32 V	40 A	Automotive	Blade, Max	Requires Holder	ISO, SAE	1 kA	Fast Blow	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 A AC 32 V DC Fuse Automotive Requires Holder Blade, Max
