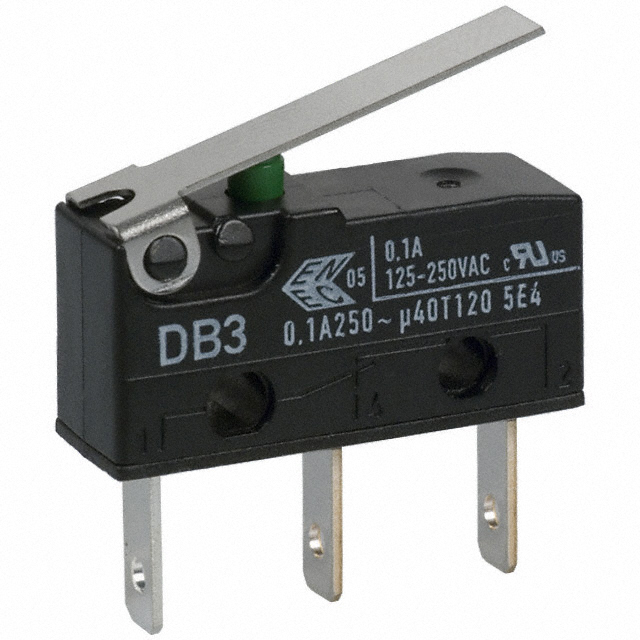

Specification	DB3CB1LB

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating	100 mA
Differential Travel (Linear)	0.02 in
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Mechanical Life (Cycles)	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	60 gf
Operating Position (Length)	0.42 in
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Overtravel (Linear)	0.079 in
Pretravel (Length)	0.157 in
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Mom
Termination Style	Quick Connect
Voltage Rating - AC	125 V

DB3C Series

Part	Differential Travel (Linear)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Electrical Life (Cycles)	Operating Position (Length)	Circuit	Mechanical Life (Cycles)	Operating Force	Pretravel (Length)	Overtravel (Linear)	Termination Style	Switch Function	Voltage Rating - AC	Current Rating	Actuator Type	Ingress Protection Description	Ingress Protection IP Rating	Quick Connect Size (0.110")
ZF Electronics DB3C-A1AA	0.004 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.33 in 0.331 in	SPDT	15000000 Cycles	150 gf	0.04 in	0.024 in 0.025 in	Solder Lug	On-Mom	125 V	100 mA	Round (Pin Plunger)	Dust Protected	IP50
ZF Electronics DB3C-A1LB	0.02 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.42 in 0.421 in	SPDT	15000000 Cycles	60 gf	0.157 in	0.079 in 0.081 in	Solder Lug	On-Mom	125 V	100 mA	Lever Straight	Dust Protected	IP50
ZF Electronics DB3C-A1RC	0.025 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.638 in	SPDT	15000000 Cycles	55 gf	0.178 in	0.079 in	Solder Lug	On-Mom	125 V	100 mA	Lever Roller	Dust Protected	IP50
ZF Electronics DB3CB1AA	0.004 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.33 in	SPDT	15000000 Cycles	150 gf	0.04 in	0.025 in	Quick Connect	On-Mom	125 V	100 mA	Round (Pin Plunger)	Dust Protected	IP50	0.11 in
ZF Electronics DB3C-A1LC	0.025 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.437 in	SPDT	15000000 Cycles	50 gf	0.178 in	0.079 in 0.081 in	Solder Lug	On-Mom	125 V	100 mA	Lever Straight	Dust Protected	IP50
ZF Electronics DB3CD5AA	0.004 in	Right Angle Through Hole	120 °C	-40 °C	100000 Cycles	0.33 in	SPDT	15000000 Cycles	150 gf	0.04 in	0.025 in	PC Pin	On-Mom	125 V	100 mA	Round (Pin Plunger)	Dust Protected	IP50
ZF Electronics DB3C-B1LC	0.025 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.437 in	SPDT	15000000 Cycles	50 gf	0.178 in	0.079 in	Quick Connect	On-Mom	125 V	100 mA	Lever Straight	Dust Protected	IP50	0.11 in
ZF Electronics DB3CC1AA	0.004 in	Through Hole	120 °C	-40 °C	100000 Cycles	0.33 in	SPDT	15000000 Cycles	150 gf	0.04 in	0.025 in	PC Pin	On-Mom	125 V	100 mA	Round (Pin Plunger)	Dust Protected	IP50
ZF Electronics DB3CB1LB	0.02 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.42 in	SPDT	15000000 Cycles	60 gf	0.157 in	0.079 in	Quick Connect	On-Mom	125 V	100 mA	Lever Straight	Dust Protected	IP50	0.11 in
ZF Electronics DB3C-B1RC	0.025 in	Chassis Mount	120 °C	-40 °C	100000 Cycles	0.638 in	SPDT	15000000 Cycles	55 gf	0.178 in	0.079 in	Quick Connect	On-Mom	125 V	100 mA	Lever Roller	Dust Protected	IP50	0.11 in
