9058 0101000

Active

Belden Inc.

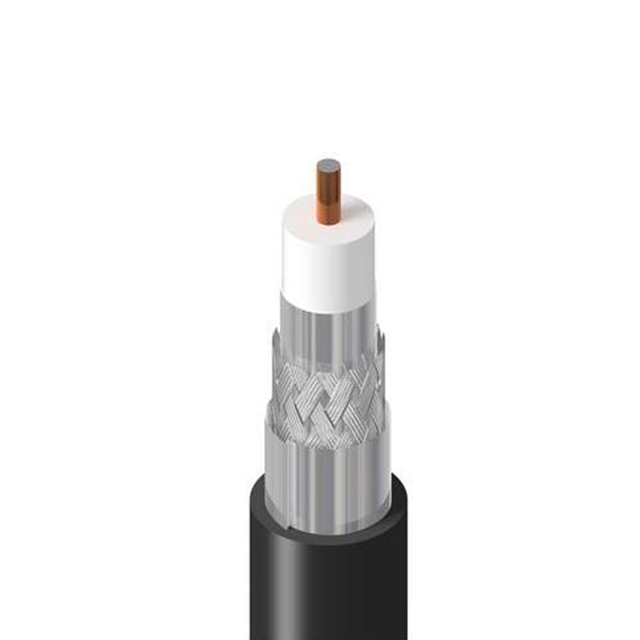

COAX 75 OHM RG6 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

COAX 75 OHM RG6 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9058 0101000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	75 %, 100 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Impedance	Shield Coverage	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Wire Gauge	Conductor Material	Cable Group	Dielectric Material	Jacket (Insulation) Material	Cable Type	VoP, Velocity of Propagation	Jacket Color	Shield Material	Shield Type
Belden Inc. 9058 0101000	75 Ohms	75 % 100 %	Solid	6.99 mm	0.275 in	0.18 in	4.57 mm	-40 °C	80 C	304.8 m	1000 ft	18 AWG	Copper Coated Steel	RG-6	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	Coaxial	83	Black	Aluminum	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.35

General part information

Coaxial Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
