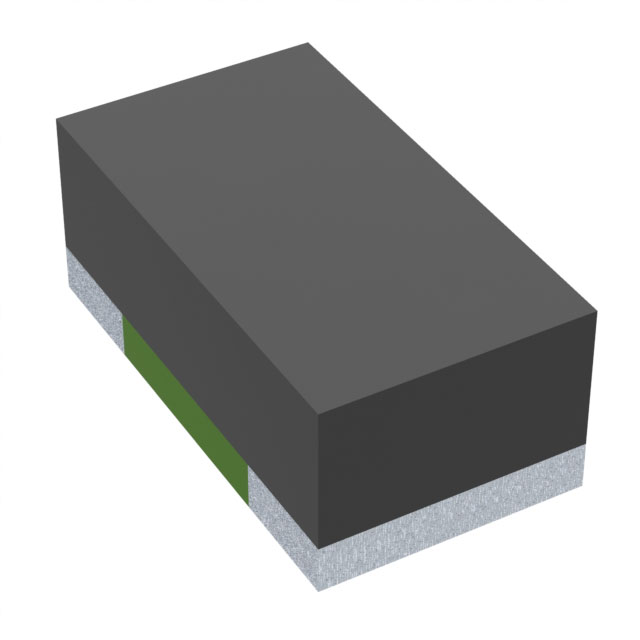

RLM-0510-FL-R009-FNH
ObsoleteDelta Electronics/Cyntec
RES 0.009 OHM 1% 1/3W 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RLM-0510-FL-R009-FNH
ObsoleteDelta Electronics/Cyntec
RES 0.009 OHM 1% 1/3W 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RLM-0510-FL-R009-FNH |
|---|---|
| Features | Current Sense |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Power (Watts) | 0.333 W |
| Power (Watts) | 0.3333333333333333 W |
| Resistance | 9 mOhms |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.022 " |
| Size / Dimension [y] | 0.55 mm |
| Supplier Device Package | 0510 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.40 | |||
| Tape & Reel (TR) | 10000 | $ 0.15 | ||
Description
General part information
RLM-0510 Series
9 mOhms ±1% 0.333W, 1/3W Chip Resistor 0402 (1005 Metric) Current Sense Metal Foil
