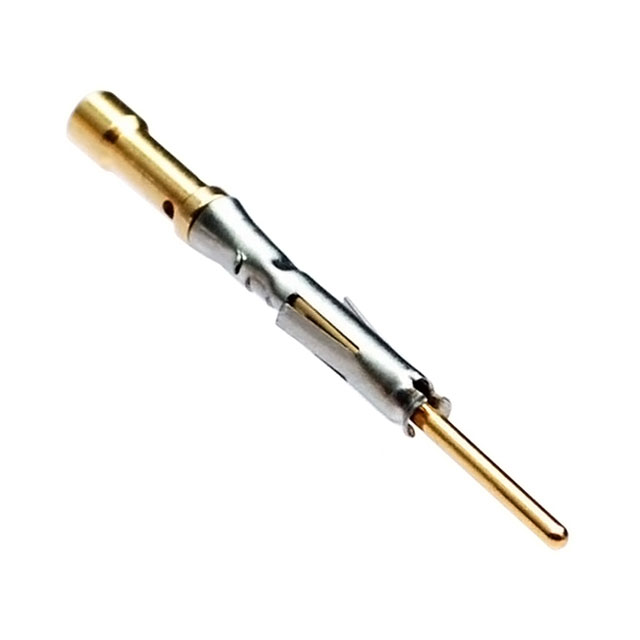

MP28W23F
ActiveAmphenol Sine Systems Corp
CONTACT PIN 28-30AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
MP28W23F
ActiveAmphenol Sine Systems Corp
CONTACT PIN 28-30AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP28W23F |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Termination Finish | Copper Alloy |
| Type | Signal, Machined |
| Wire Gauge or Range - mm² [Max] | 0.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.34 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.88 | |
Description
General part information
MP28 Series
Pin Contact 28-30 AWG Size 20 Crimp Gold
