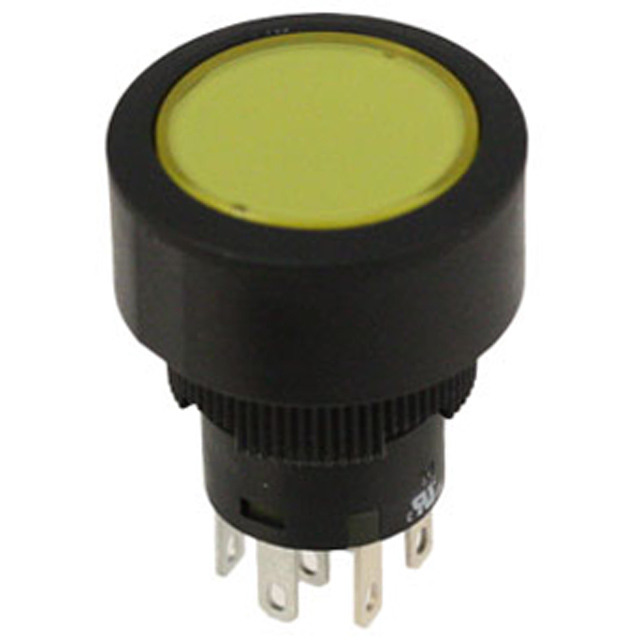

YB225CWCKW01-5D-EB

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB225CWCKW01-5D-EB

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB225CWCKW01-5D-EB	YB225C Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Plunger for Cap, Flush, Button, Round
Circuit	DPDT	DPDT
Color - Actuator/Cap	Yellow (White Filter/Diffuser)	Silver, Red, Yellow (White Filter/Diffuser), Brushed Chrome, Green, Clear
Current Rating (Amps)	3 A	0.4 - 3 VA
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	Amber, LED	Amber, LED, Red, Green
Illumination Voltage (Nominal)	2 VDC	1.9 - 24 V
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	21 mm
Panel Cutout Dimensions	-	21 mm
Panel Cutout Dimensions [diameter]	22 mm	22 mm
Switch Function	On-Mom	On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Standard, Illuminated
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB225C Series

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - AC	Circuit	Switch Function	Mounting Type	Termination Style	Termination Style	Termination Style	Features	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Ingress Protection	Electrical Life	Voltage Rating - DC	Illumination Type, Color	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK SWITCHES YB225CWCKG01/CUL	Plunger for Cap	0.4 VA	22 mm	Standard	28 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	70 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	28 V
NKK SWITCHES YB225CWCPW01-5D24-JS	Button, Flush, Round	3 A	22 mm	Illuminated, Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	50 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V	Amber, LED	Silver	24 V
NKK SWITCHES YB225CWCKW01/CUL-N-CB	Button, Flush, Round	3 A	22 mm	Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	70 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V		Red
NKK SWITCHES YB225CWCKW01-5D-EB	Button, Flush, Round	3 A	22 mm	Illuminated, Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	50 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V	Amber, LED	Yellow (White Filter/Diffuser)	2 VDC
NKK SWITCHES YB225CWCPW01-N-P	Button, Flush, Round	3 A	22 mm	Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	70 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V		Brushed Chrome
NKK SWITCHES YB225CWCKW01-5C12-CB	Button, Flush, Round	3 A	22 mm	Illuminated, Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	50 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V	LED, Red	Red	12 VDC
NKK SWITCHES YB225CWCKG01	Plunger for Cap	0.4 VA	22 mm	Standard	28 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	70 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	28 V
NKK SWITCHES YB225CWCKW01	Plunger for Cap	3 A	22 mm	Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	70 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V
NKK SWITCHES YB225CWSKG01	Plunger for Cap	0.4 VA		Standard	28 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	70 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	28 V				21 mm	21 mm
NKK SWITCHES YB225CWCKW01-5F12-FB	Button, Flush, Round	3 A	22 mm	Illuminated, Standard	125 V	DPDT	On-Mom	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	Tactile Feedback	1000000 Cycles	50 °C	-25 °C	No Marking	IP65 - Dust Tight, Water Resistant	100000 Cycles	30 V	Green, LED	Green	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.73
		10	$ 27.97
		25	$ 26.67
		50	$ 24.88
		100	$ 23.90
		250	$ 22.28
Newark	Each	1	$ 56.00
		5	$ 49.94
		10	$ 48.24
		25	$ 45.58
		50	$ 42.42
		100	$ 37.58
		250	$ 33.70

Description

General part information

YB225C Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
