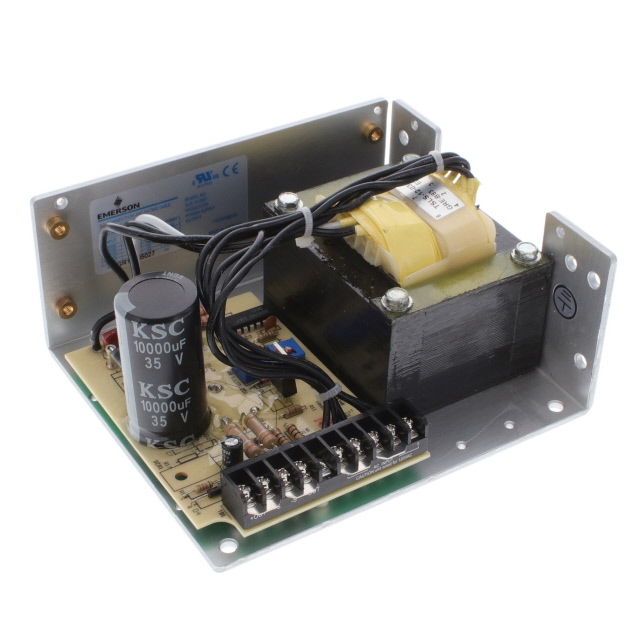

SLS-12-034T

SolaHD

AC/DC CONVERTER 12V 41W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER 12V 41W

Technical Specifications

Parameters and characteristics for this part

Specification	SLS-12-034T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	3.4 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	41 W
Size / Dimension [x]	5.62 in
Size / Dimension [x]	142.7 mm
Size / Dimension [y]	4.87 in
Size / Dimension [y]	123.7 mm
Size / Dimension [z]	32.5 mm
Size / Dimension [z]	1.28 in
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	12 V

Part	Applications	Features	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Mounting Type	Current - Output 1	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]
SolaHD SLS-12-017T	ITE (Commercial)	Adjustable Output Remote Sense	CSA cURus	240 VAC	100 VAC	20 W	Chassis Mount	1.7 A	Open Frame	1	3.99 in	101.4 mm	123 mm	4.84 "	41.1 mm	1.62 in	12 V
SolaHD SLS-12-068T	ITE (Commercial)	Adjustable Output Remote Sense	CSA cURus	240 VAC	100 VAC		Chassis Mount		Open Frame	1	4.87 in		228.6 mm	9 in		2.75 in	12 V	69.9 mm	123.7 mm
SolaHD SLS-12-034T	ITE (Commercial)	Adjustable Output Remote Sense	CSA cURus	240 VAC	100 VAC	41 W	Chassis Mount	3.4 A	Open Frame	1	4.87 in		142.7 mm	5.62 in		1.28 in	12 V	32.5 mm	123.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 100 ~ 240 VAC Input
