62PP031BG14
ActiveEssentra Access Solutions

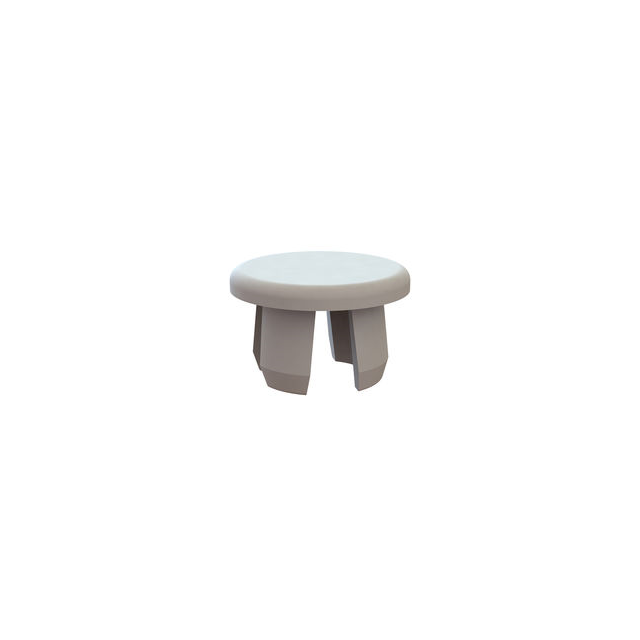

HOLE PLUG, .312 HOLE, .031-.140
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
62PP031BG14
ActiveEssentra Access Solutions
HOLE PLUG, .312 HOLE, .031-.140
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 62PP031BG14 |
|---|---|
| Color | Natural |
| Flange Diameter | 11.51 mm |
| Flange Diameter | 0.453 in |
| Hole Diameter [diameter] | 7.93 mm |
| Hole Diameter [diameter] | 0.312 in |
| Material | Nylon |
| Panel Thickness [Max] | 0.14 in |
| Panel Thickness [Max] | 3.56 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Type | Body Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 3000 | $ 0.08 | |||
Description
General part information
62PP031B Series
Hole Plug 0.312" (7.93mm) Nylon Natural
Documents
Technical documentation and resources
