5-917696-1

Active

TE Connectivity AMP Connectors

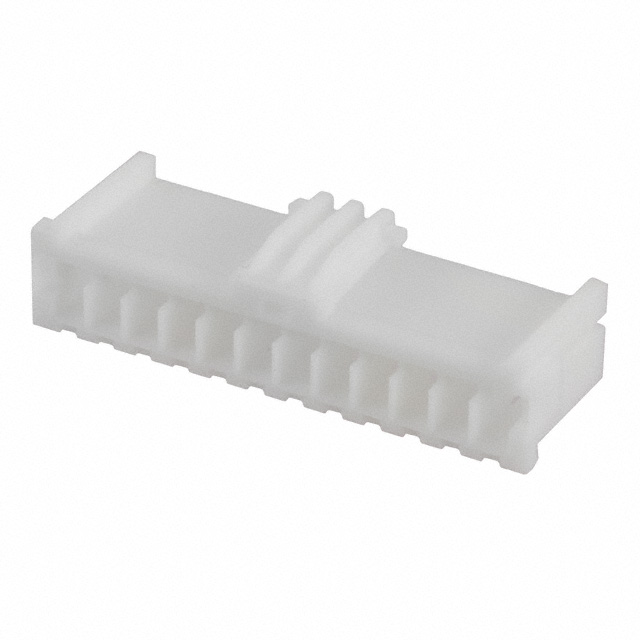

CONN PLUG HSG 12POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 12POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG HSG 12POS 2.50MM

Part	Connector Type	Contact Termination	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Pitch [x]	Pitch [x]	Color	Contact Type	Insulation Material	Number of Rows
TE Connectivity AMP Connectors 5-917696-1	Plug	Crimp	12	Contacts Not Included	-30 ░C	105 ░C	Free Hanging (In-Line)	Locking Ramp	0.098 in	2.5 mm	Natural	Female Socket	Polyamide (PA66), Nylon 6/6	1
TE Connectivity AMP Connectors 917696-1	Plug	Crimp	12	Contacts Not Included	-30 ░C	105 ░C	Free Hanging (In-Line)	Locking Ramp	0.098 in	2.5 mm	Natural	Female Socket	Polyamide (PA66), Nylon 6/6	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
