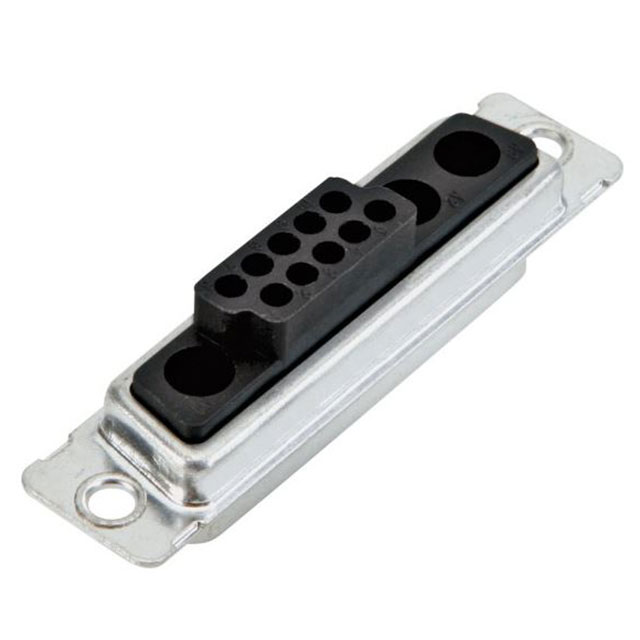

321WA4PXK99A10X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 21POS

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 21POS

Technical Specifications

Parameters and characteristics for this part

Specification	321WA4PXK99A10X

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	21WA4, 4 (DC, C)

Part	Dielectric Material	Shell Size, Connector Layout	Number of Rows	Features	Contact Type	Flange Feature	Connector Style	Number of Positions	Connector Type	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Voltage Rating	Contact Finish	Wire Gauge	Current Rating (Amps)	Contact Finish Thickness	Material Flammability Rating	Color
Amphenol CONEC 321WA4PXK99A60X	Polybutylene Terephthalate (PBT) Glass Filled	21WA4 4 (DC C)	2	Grounding Indents	Coax Power	Housing/Shell (Unthreaded)	Combo D-Sub	21	Plug for Male Contacts	Free Hanging (In-Line)	Contacts Not Included	-55 °C	125 °C
Amphenol CONEC 321WA4PAM99A30X	Polybutylene Terephthalate (PBT) Glass Filled	21WA4 4 (DC C)	2	Grounding Indents		Cable Side	Combo D-Sub	21	Male Pins Plug	Free Hanging (In-Line)				Copper Alloy	250 VDC	Gold	20 AWG	7.5 A	Flash	UL94 V-0	Green
Amphenol CONEC 321WA4PXK99A10X	Polybutylene Terephthalate (PBT) Glass Filled	21WA4 4 (DC C)	2	Grounding Indents	Coax Power	Housing/Shell (Unthreaded)	Combo D-Sub	21	Plug for Male Contacts	Free Hanging (In-Line)	Contacts Not Included	-55 °C	125 °C								Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Plug for Male Contacts Housing D-Sub, Combo Connector 21 (17 + 4 Coax or Power) Position
