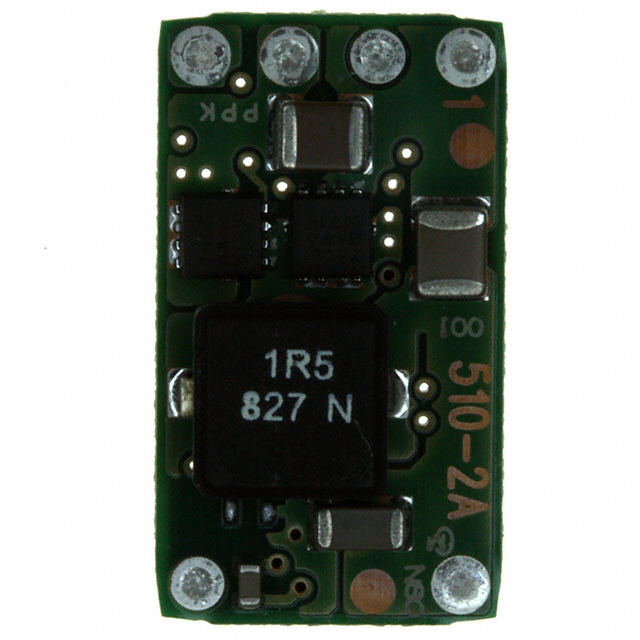

MPDTH12050WAS

Active

Murata Power Solutions Inc.

DC DC CONVERTER 1.2-5.5V 33W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 1.2-5.5V 33W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 6A 10.8V - 13.2V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 1.2-5.5V 33W

Part	Power (Watts)	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Control Features	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MPDTH12050WAS	33 W	10.8 V	12.6 mm	9.1 mm	22.1 mm	0.49 in	0.36 in	0.87 in	Surface Mount	Active High, Enable	OCP, Remote On/Off, SCP, UVLO	5.5 V	1.2 V	1	ITE (Commercial)	13.2 V	6-SMD Module	6 A	85 °C	-40 °C	Non-Isolated PoL Module	93 %
Murata Power Solutions Inc. MPDTH12050WAH	33 W	10.8 V			22.1 mm	0.49 in	0.33 in	0.87 in	Through Hole			5.5 V	1.2 V	1	ITE (Commercial)	13.2 V	6-DIP Module	6 A	85 °C	-40 °C	Non-Isolated PoL Module	93 %	12.6 mm	8.5 mm
